conveyor belt scale indicator OIML Approved(sw3000B)

weighing Belt controller OIML Approved(sw3000B)

Belt controlle Basic performance

1)Apply to Continuous weighing and feeding equipment Inspection and control, such as Belt scales, cutters scale, impact  flowmeters and so on

2) Load sensor input, load cell power source is 10v/200mA,6-wire or 4-wire connection, measure speed is 100times per second, Measure accuracy is 0.05 class.

3)  Receive DC current signal, Measure accuracy is 0.2 class.

4)  2 4~20mAIsolated outputs,Apply to feeding speed control and instantaneous flow rate output.accuracy is 0.2 class.

5) 6 oc output, DC30V/100mA, For Belt start, instrument ready, running, cumulative impulse, volume complete, alarm and related features

6) 1 Speed sensor input, Connect with Proximity switches, photoelectric switches and incremental rotary encoder.load cell power supply is 12V.

7)  5 swith measure output, Realize start, alram reset and set options functions

8) Can choose another Communications interface, except Standard Communications interface. The computer can work with other smart device.

9) Full metal jacket, removable terminal blocks. Easy installation and wiring

10) 160×160 high resolution, 1 colour led screen.Chinese character display with help message.Easy to operate and set up.

Belt controller Description

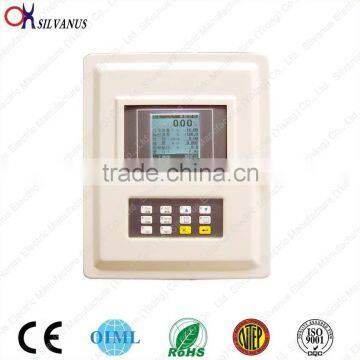

Belt controller Appearance:
