Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | TSH | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

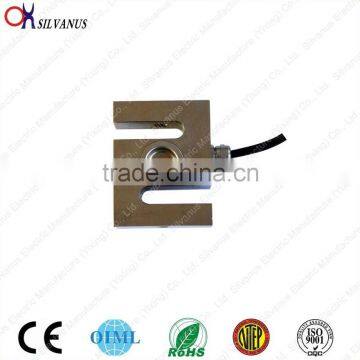

S Type Load Cell (TSH)(200~5000kg)
Load Cell (TSH) Features
1.Hermetically sealed structure
2.Max. Capacities :200kg~5000kg
3.Good output symmetry,compact structure,overload protected,high security
4.Simple to install,full range of capacities
Suitable for electromechanical scale,crane scale,hopper scale and various
special scales.
Load Cell (TSH) Application
Suitable for electromechanical scale,crane scale,hopper scale and various special scales.
Load Cell (TSH) Dimensions(mm)
Load Cell (TSH) Specifications
| Emax(Max. capacity) | kg | 200~5000 | |
| Sensitivity | mV/V | 2.0±0.002 | |
| Accuracy class | C2 | C3 | |
| Maximum number of verification intervals | nmax | 2000 | 3000 |
| Minimum load cell verification interval | Vmin | Emax/5000 | Emax/10000 |
| Combined error | %F.S | ≤±0.030 | ≤±0.020 |
| Creep | %F.S/30min | ≤±0.024 | ≤±0.016 |
| Temperature effect on sensitivity | %F.S/10°C | ≤±0.017 | ≤±0.011 |
| Temperature effect on zero | %F.S/10°C | ≤±0.023 | ≤±0.015 |
| Zero balance | %F.S | ±1.0 | |
| Input resistance | Ω | 380±10Ω | |
| Output resistance | Ω | 352±3Ω | |
| Service temperature range | °C | -30...+70 | |
| Safe overload | %F.S | 150 | |
| Ultimate overload | %F.S | 200 | |
| Recommended excitation voltage | V | 5…15 | |
| Insulation resistance | MΩ/50V | ≥ 5000 | |
| Protection class | IP67/IP68 | ||
| Load cell material | Stainless steel | ||
| Cable Size | 5m | ||
| Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow] | |||
