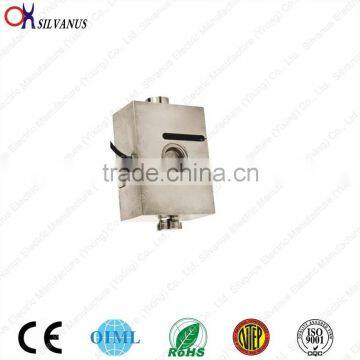

15t High accuracy S-type load cell(TSK)

FOB Price

USD $80 - $150 / Piece

2 Pieces(Min.Order)

Port shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	SILVANUS
Model Number	TSK	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

S Type Load Cell(TSK)(15~30t)

Load Cell(TSK) Features

1.Hermetically sealed

2.Max. Capacities :15,20,30t

3.Compact structure integrated and high precision

4.Application and scales, batching and weighing control and electronic truck scale

Load Cell(TSK) Dimensions(mm)

Load Cell(TSK) Specifications

Emax(Max. capacity)	t	15,20,30
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10℃	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10℃	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	380±20Ω
Output resistance	Ω	352±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67/IP68
Load cell material		alloy steel/stainless steel
Cable length	m	5
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.

LETTER OF PATENT:

Transportation	Routine
By car	3 hours from Shanghai to Yixing
By high speed railway	2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company.
