Product Details
Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
Model Number | PX6 | Usage | Pressure Sensor | |
Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

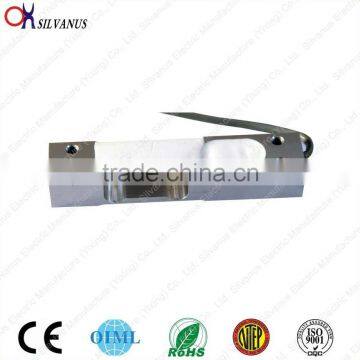

Single Point Load Cell (PX6)(3~50kg)
PX6 Load Cell Features :
l Double holes cantilever beam structure
l Temperature compensated and four corners adjusted
l Low profile , small size
l Suitable for electronic price computing scale , table top scale ,platform scale and other small capacity electronic scales .
PX6 Load Cell Dimensions(mm):
PX6 Load Cell Specifications:
Sensitivity | mV/V | 2.0±0.2 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/2000 | Emax/3000 |
Combined error | %F.S | ≤±0.020 | ≤±0.015 |
Creep | %F.S/30min | ≤±0.020 | ≤±0.015 |
Temperature effect on zero | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 410±10Ω | |
Output resistance | Ω | 350±3Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 120 | |
Ultimate overload | %F.S | 200 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 |
Packaging & Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
Transportation | Routine |
By car | 3 hours from Shanghai to Yixing |
By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
