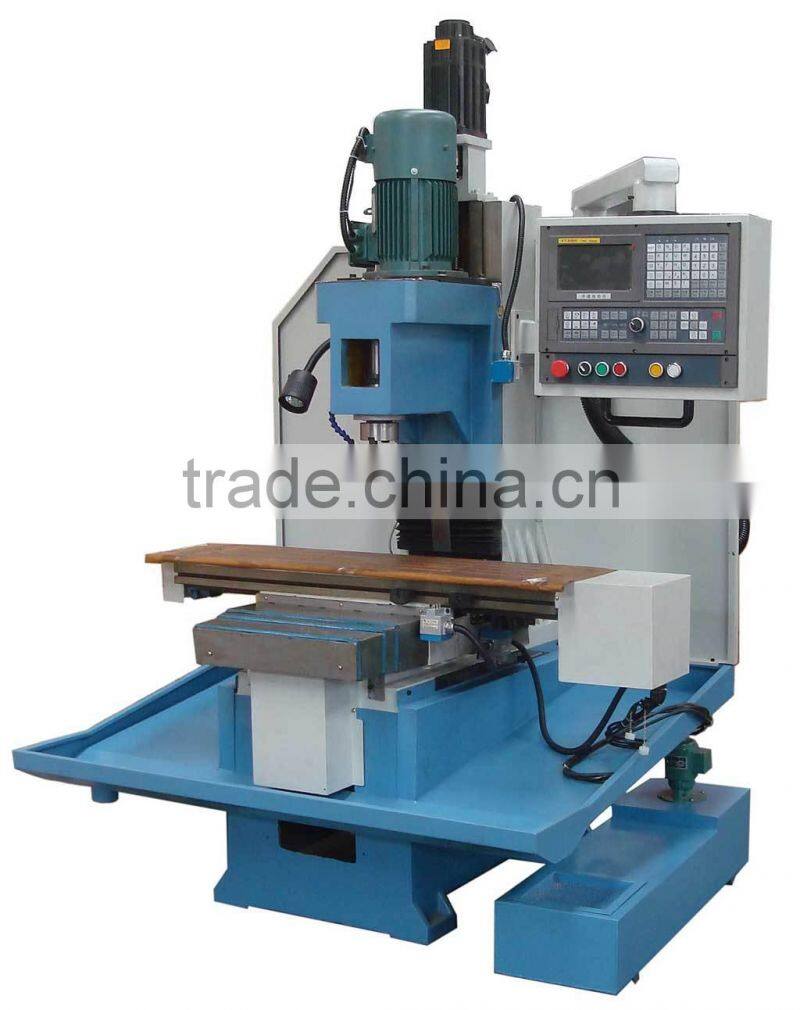

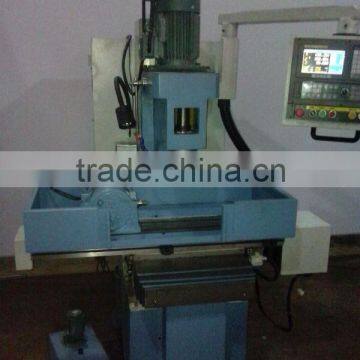

Small CNC MILLING MACHINE XK7124
US$ 8,000 - 11,800
/ Set
1 Set(Min. Order)
- QINGDAO/SHANGHAI/DA LIAN
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | XK7124 | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1300 x 1400 x 2000 | Weight | 900KG | |
| Certification | ISO 9001 | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1.stable structure and high rigidity2.small machine frame and best reinforce cast frame
3.economic price and high precision
This is one small cnc milling and drilling machine,but as one machine tool,it is better than other same machine.
As it has reinforced column,stable slide ram and entire rigidity of all guideway,worktable.Its precision can achieve 0.01-.0.2mm,it has best quality and best function.
Item | Unit | Model:XK7124 |
Worktable size | mm | 1000 x 240 |
Travel of table X,Y,Z | mm | 450 x 280 x 400 |
Size of T-Slots |
| 5/14/44 |
Range of spindle speed | r.p.m | 3000 |
Spindle taper |
| BT 40 |
Distance from spindle center to column surface | mm | 300 |
Distance from spindle nose to surface of worktable | mm | 450 |
Main motor power | kw | 2.2 |
X,Y axis motor power | Nm | 4 |
Z axis motor power | Nm | 15 |
Locating precision | mm | 0.02 |
Machine weight | kg | 900 |
Overall dimension | mm | 1300 x 1400 x 2000 |
