Home > Products > Milling And Drilling Machine > Small Drilling and Milling Machine ZX50C

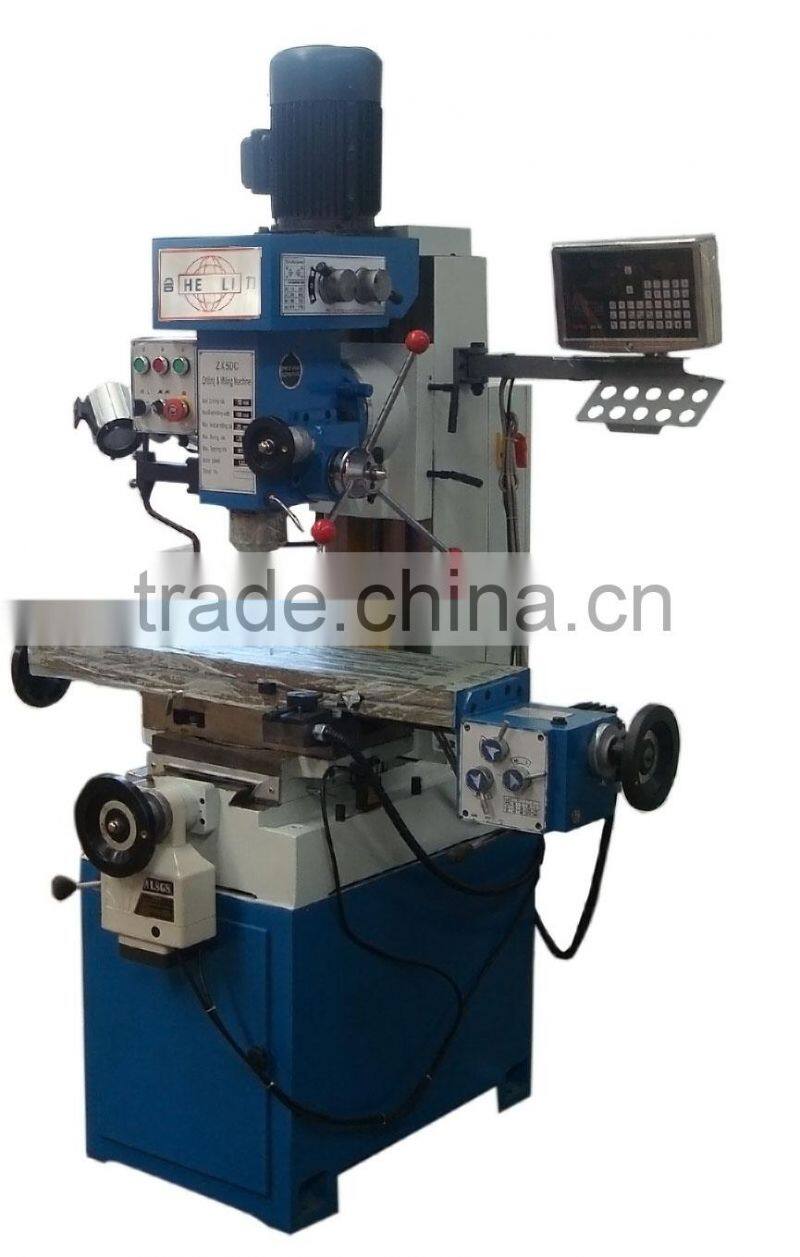

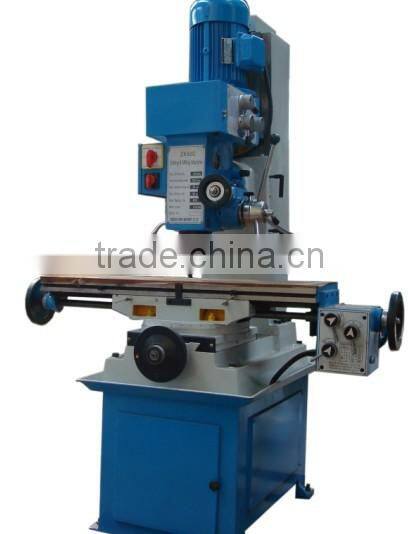

Small Drilling and Milling Machine ZX50C

FOB Price

US$ 1,100 - 2,390 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	ZX50C
Type	Vertical	CNC or Not	Normal
Voltage	380V	Power(W)	1.5kw
Dimension(LWH)	1100x970x1650	Weight	500kg
Certification	NO	Warranty	12months
After-sales Service Provided	No overseas service provided

Product Description

Specifications

1.small size
2.easy operate
3.low price
4.more stable precision and durable

This machine is used for metal and other materialmilling,drilling,reaming,boring,grinding,cutting and tapping,the headstock can rotate 90,45 at right and left sides in the vertical plane,its worktable also could travel in transverse and longitudinal direction,some type also could travel in vertical direction.(superior the 7550 model.)Those machine is widely used in the field for instrument,maching,repairing for cutting a single part or a batch of parts.

No.	Item Name	Numerical Values
No.	Item Name	ZX7550CW	ZX50C	ZX50F	ZXTM40	ZXL-20	ZXL-16
1	Drilling capacity	50	50	50	40	20	16
2	End milling capacity	120	100	100	100	40	30
3	Vertical milling capacity	25	25	25	20	10	8
4	Boring capacity	120	120	120	120	--	--
5	Tapping capacity	M16	M16	M16	M16	M12	M12
6	Distance between spindle nose and worktable	100-480	38-430	38-430	120-550	70-410	80-380(115-380)
7	Range of spindle speed	230-1825(V) 80-1300(H)	230-1825	230-1825	168-3160	250-3200	250-3200
8	Spindle travel	120	120	120	120	90	84
9	Table size	1000 x 240	900 x 240	900 x 240	800 x 240	600 x 200	420 x 160
10	Table travel	400 x 250	400 x 230	400 x 230	400 x 250	250 x 140	250 x 120
11	Overall dimensions	1280 x 1100 x 2250	1100 x 970 x 1650	1100 x 970 x 1650	1100 x 1050 x 1330	850 x 780 x200	750 x 690 x 1100
12	Motor power	(V)0.85/1.5 (H) 1.5	1.5	1.5	1.5	0.55	0.37
13	N.W/G.W	850/1000	500/600	460/520	410/460	135/150	100/115
