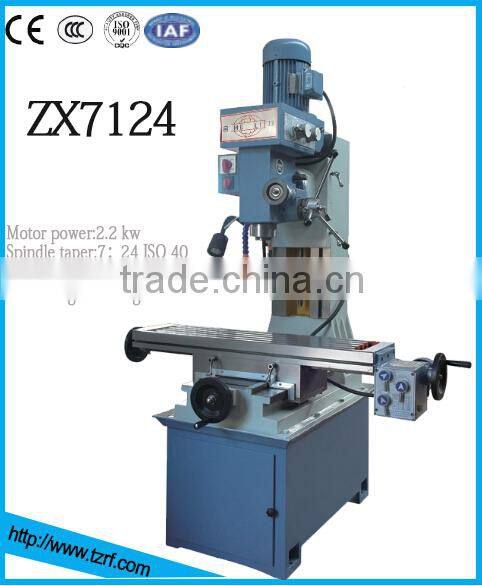

Milling and Drilling Machine ZX7124
- QINGDAO/SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | ZX7124 | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 220V/240V/380V/440v | Power(W) | 2.2kw two speed | |
| Dimension(L*W*H) | 1300*1000*1700 | Weight | 650kg | |
| Certification | CE ISO | Warranty | 13 Months | |
| After-sales Service Provided | No overseas service provided |
Product Description
1) 220V single phase Or 380V three phase Capacitor motor 2200W(two speed)
2) X axis Gear feed
3) Y axis Box guide way
4) Working lamp
5) Coolant system
6) Vise
7) NT30 Spindle taper or NT40 Spindle taper
8) Tool holder set NT30 ER32 or NT40
Specification | UNIT | ZX7124 |
Spindle taper |
| 7:24 ISO 40 |
Distance between spindle nose and table surface | mm | 60-500mm |
Distance between spindle axis and column guideway | mm | 310mm |
Spindle speed range | rpm | 8 steps 115-1750 rpm |
Table size | mm | 1000mm x 240 mm |
Table travel(X,Y) | mm | 550mm x 320mm |
Main motor power | kw | 2.2kw(two- speed) |
Swivel angle of milling head | ° | ±45°
|
Overall dimension | mm | 1300 x 1000 x 1700 |
N.W/G.W | kg | 600/650 |
The Standard Accessories:
No. | Accessories Name | ZX7124 | |
model | Qty | ||
1 | Drilling&Milling Machine |
| 1 |
2 | Hexagon ring spanner | 5 | 1 |
3 | Wrench | 17-19 | 1 |
4 | Milling chuck | MT4 | 1 |
6 | Spindle connecting rod |
| 1 |
7 | Drilling chuck | 16 | 1 |
8 | Wedge(drift) |
| 1 |
9 | Crank |
| 1 |
10 | Draw bar |
| 1 |
11 | Reduction sleeve | MT4/2 | 1 |
12 | Reduction sleeve | MT3/2 | 1 |
13 | Machine vice | 125mm | 1 |
15 | Quality certification |
|
|
16 | Operation manual |
| 1 |
