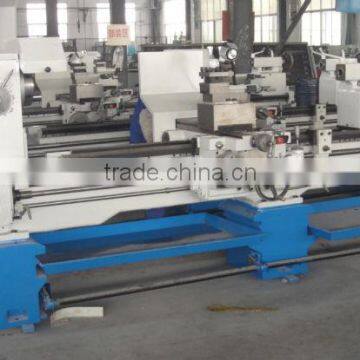

Horizontal Lathe Machine CA6280C

FOB Price

Negotiable / Set

4 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	8	Place of Origin	China
Brand Name	HELI	Model Number	CA6280C
Voltage	380V	Power(W)	7500
Dimension(LWH)	430x1140x1750	Weight	3490
Certification	CE	After-sales Service Provided	No overseas service provided

High quality casting body
Hardened and ground bed way coated with Turcite-B
Integrated automaticc lubrication system

Model specifications			CA6280C
Max .Swing over bed			800mm
Max .Swing over carriage			540mm
Max .Swing in gap			——	1020mm
effective gap length			——	210mm
Max .length of work piece			2200mm
width of bed			400mm
section of turning tool			25×25mm
Spindle	spindle speed		10-1400rpm/16-1400rpm(24steps)
	hole through spindle		105mm
	spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		(64 kinds)(for each)
	range of metric threads		(1-192mm) (44 kinds)
	range of inch threads		(1-24tpi)(21kinds)
	range of module threads		0.25-48(module 39 kinds)
	range of pitc threads		1-96DP(37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	tailstock spindle diameter		75mm
	taper of tailstock spindle center hole		NO.5 (MT5)
main motor			7.5KW(10HP)
Packing dimensions (L×W×H mm)		Overall dimensions for 2200mm	4030×1140×1750
Weight(kg)		Length	G.W. N.W.
		Overall dimensions for 2200mm	3490 3287
