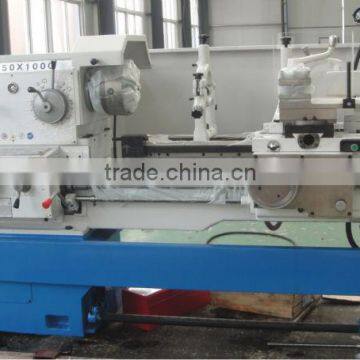

Horizontal Lathe Machine CA6150/CA6250

FOB Price

Negotiable / Set

4 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	50	Place of Origin	China
Brand Name	HELI	Model Number	CA6150
Voltage	380V	Power(W)	7500
Dimension(LWH)	2650x1140x1750	Weight	2260
Certification	CE	After-sales Service Provided	No overseas service provided

High quality casting body
Hardened and ground bed way coated with Turcite-B
Integrated automaticc lubrication system

Model specifications			CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C
Max .Swing over bed			500mm
Max .Swing over carriage			300mm
Max .Swing in gap			——	720mm
effective gap length			——	210mm
Max .length of work piece			1000/1500mm
width of bed			400mm
section of turning tool			25×25mm
Spindle	spindle speed		10-1400rpm/16-1400rpm(24steps)
	hole through spindle		52mm ,(80mm),[105mm]
	spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		(64 kinds)(for each)
	range of metric threads		(1-192mm) (44 kinds)
	range of inch threads		(1-24tpi)(21kinds)
	range of module threads		0.25-48(module 39 kinds)
	range of diametral pitc threads		1-96DP(37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	tailstock spindle diameter		75mm
	taper of tailstock spindle center hole		NO.5 (MT5)
main motor			7.5KW(10HP)
Packing dimensions (L×W×H mm)		Overall dimensions for 1000mm	2650×1140×1750
		Overall dimensions for 1500mm	3150×1140×1750
Weight(kg)		Length	G.W. N.W.
		Overall dimensions for 1000mm	2260 2140
		Overall dimensions for 1500mm	2420 2290

Standard accessories

l Centers

l Steady rest

l Follow rest

l Foot plate

l 3-jaw chuck

l 4-jaw chuck

l Chuck protection

l Leading screw guard

l Tool post protection

Optional accessories

l Digital readout

l Quick change tool post
