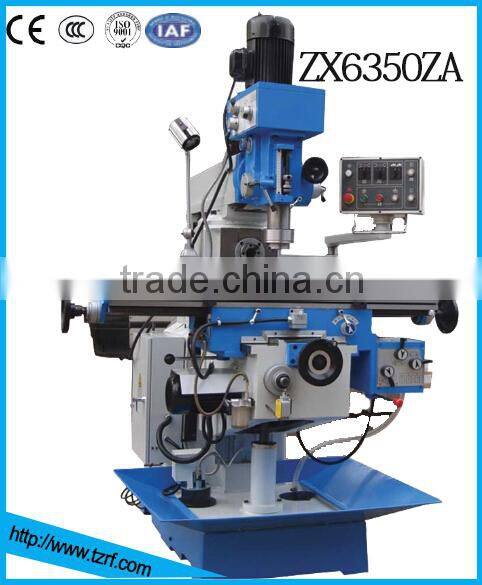

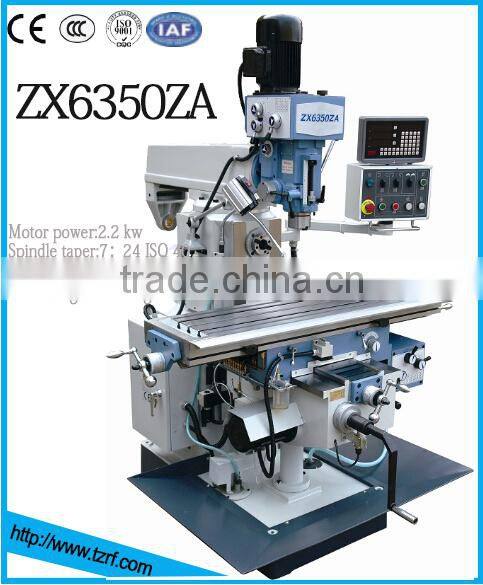

Universal Drilling&milling Machine ZX6350ZA
- QINGDAO/SHANGHAI/NINGBO
- T/T
You May Like
-
Vertical and Horizontal Drilling&Milling Machine ZX6350ZA
-
Small Milling and Drilling Machine ZX7124
-
Small High Precision Milling and Drilling Machine ZX7124
-
Multifunction Drilling and Milling Machine Tool ZX7124
-
Professional Multifunction Drilling and Milling Machine Tool ZX7124 Quality Choice
-
ZX7124 Small Milling Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | ZX6350ZA | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 240V/380V/440 | Power(W) | 1.5kw vertical 2.2kw horizontal | |
| Dimension(L*W*H) | 1680X1480X2150mm | Weight | 1500KG | |
| Certification | CE ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
Standard accessories
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches.
Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit.
Item | Unit | ZX6350ZA |
Spindle taper |
| 7:24 ISO40 |
Max Automatic Feed Drilling Diameter (for Casting Iron) | mm | 8 |
Max Manual Drilling Diameter (for Casting Iron) | mm | 50 |
Max Diameter of Vertical Millng Arbour | mm | 25 |
Max diameter of boring hole | mm | 120 |
Worktable size | mm | 1250×320 |
Worktable travel(L/H/V) | mm | 600/300/280 |
Vertical spindle nose to worktable | mm | 90---370 |
Horizontal spindle centerline to worktable | mm | 0---280 |
Vertical spindle centerline to vertical guideway | mm | 200---550 |
Spindle speed range | r.p.m | (8 steps)60---1500(Vertical) (12steps)30---1300(Horizontal) |
Automatic Power Feed of X,Y Axis | mm/min | (8 steps) 15-370 |
Vertical Spindle Travel | mm | 120 |
Worktable t-slot (nunmber/width/distance) | mm | 3/14/70 |
Main motor | kw | 1.5(Vertical) 2.2(Horizontal) |
Worktable Automatic Power Feed Motor | w | 750 |
Cooling Pmp Motor | w | 40 |
Overall dimention | mm | 1680×1480×2150 |
N.W/G.W | kg | 1500/1600 |
