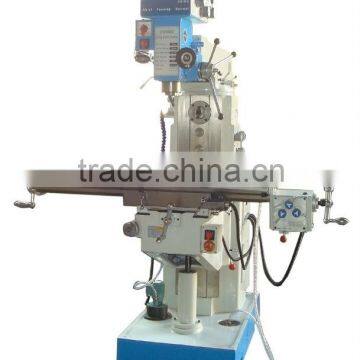

Drilling and Milling Machine ZX6350C(Vertical and Horizontal)
- QINGDAO
- T/T
You May Like
-
Drilling and Milling Machine ZX6350D(Vertical and Horizontal)
-
Drilling and Milling Machine ZX6350ZA (Vertical and Horizontal)high Precision
-
Drilling and Milling Machine ZX6332(Vertical and Horizontal)high Precision
-
Small Drilling and Milling Machine ZX50C for Sale
-
High Quality Knee-type Drilling and Milling Machine ZX6332A
-
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL)
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | ZX6350C | |
| Type | Other, vertical and horizontal | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 1.5/2.2kw | |
| Dimension(L*W*H) | 1420x1120x2095 | Weight | 1200kg | |
| Certification | NO | Warranty | 12months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1.stable machine body and frame2.high precision and stable function
3.easy maintenace and repaire
4.with Y axis power feed
The horizontal knee-type milling machine is an universal metal cutting machine tools.Cylinder mill,round piece mill,shape mill and end mill can be installed on the conical hole of main pivot of the machine which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small medium parts.User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,instrument,automobile motorcyole and other trades.
Main specification | ZX6350C |
Max. drilling dia. | 50 mm |
Max. end milling width | 120 mm |
Max. vertical milling dia. | 25 mm |
Max. boring dia. | 120 mm |
Max. tapping dia. | M 16 vertical |
Distance from spindle nose to table surface | 100-480 mm |
Range of spindle speed | 115-1750(V) 40-1300(H) r.p.m |
Spindle travel | 120 mm |
Table size | 1200 x 280 mm |
Table travel | 660 x 210 mm |
Overall dimension | 1420 x 1120 x 2095 mm |
Motor power | (V)0.85/1.5(H)2.2 KW |
N.W/G.W | 1200 / 1350 kg |
