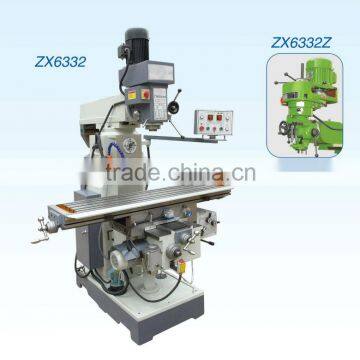

Drilling and Milling Machine ZX6332(Vertical and Horizontal)high precision
- QINGDAO
- T/T
You May Like
-
Small Drilling and Milling Machine ZX50C for sale
-
High Quality Knee-type Drilling and Milling Machine ZX6332A
-
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL)
-
Drilling and Milling Machine ZX6350D with Competitive Price
-
Drilling and Milling Machine ZX7124 with Competitive Price for Sale
-
HOT!!!Multifunction Drilling and Milling Machine ZX7150A with Competitive Price
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | ZX6332 | |
| Type | Other, vertical and horizontal | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 1.5/2.2kw | |
| Dimension(L*W*H) | 1460x1720x2100 | Weight | 1600KG | |
| Certification | NO | Warranty | 12months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1.stable machine body and frame2.high precision and stable function
3.easy maintenace and repaire
4.with X,Y ,Zaxis auto
The horizontal knee-type milling machine is an universal metal cutting machine tools.Cylinder mill,round piece mill,shape mill and end mill can be installed on the conical hole of main pivot of the machine which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small medium parts.User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,instrument,automobile motorcyole and other trades.
Main specification | ZX6332A |
Table size | 1500 x 320 mm |
T-Slot number | 3 |
Table travel(horizontal/cross/vertical) | 850 x 320 x400 mm |
Spindle taper | 7:24 ISO 40(H)MT 4(V) |
Spindle speed range | 40-1300(H) 115-1750(V) r.p.m |
Speed of table vertical lifting | 560 mm/min |
Distance from spindle axis to vertical guideway surface | 200-500(V) mm |
Distance from spindle nose to table surface | 85-460(V) 0-280(H) mm |
Motor power | 3/2.2/1.1/0.75/0.09 KW |
Overall dimension | 1460 x 1720 x 2100 mm |
Net weight | 1600 kg |
