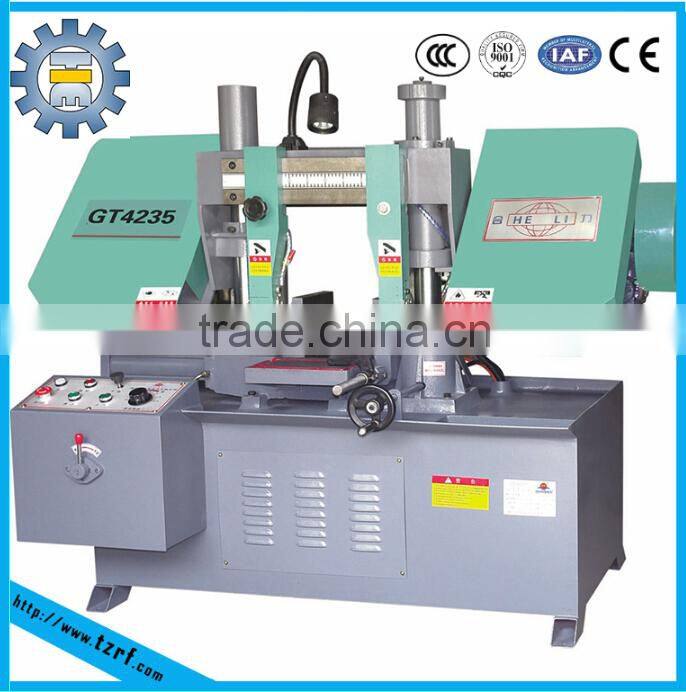

Horizontal Band Saw Machine GT4235
- QINGDAO/SHANGHAI/NINGBO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | GT4235 | |
| Voltage | 380V/240V/415V/440V/480V | Rated Power | 3 KW | |
| Dimension(L*W*H) | 2000 X 1100 X 1500 mm | Weight | 770KG | |
| Certification | CE ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
GT4235 BAND SAWING MACHINE
MAIN FEATURES:
With hydraulic system to control the cutting speed,variable speed
Useful guide system,to keel the blade can be use with long time
Double column structure,steady operations
Steady cutting,high accuracy
Manual clamping workpiece,easy operations.
Optional hydraulic clamping system with three directions.
Model No. | Unit | GT4220 | GT4220A | GT4228A | GT4235 | GT4240 |
Main motor power | Kw | 1.5 | 1.5 | 2.2 | 3 | 4 |
Hydraulic motor power | Kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 |
Coolant pump motor power | Kw | 0.04 | 0.04 | 0.04 | 0.04 | 0.09
|
Blade linear speed | Mm/min | 27/45/69 | ||||
Blad size | mm | 2650*27*0.9 | 2800*27*0.9 | 3505*34*1.1 | 4115*34*1.1 | 5000*41*1.3 |
Blade feed type | Hydraulic stepless | Hydraulic stepless | ||||
Main drive structure | Worm wheel | Worm wheel | ||||
Blade tension type |
| manual | ||||
Workpiece feed type |
| manual | ||||
Workpiece clamp type |
| manual | Hydraulic | |||
G.W | kg | 310 | 310 | 660 | 770 | 1450 |
Cutting range(round) | mm
| Ø200 | Ø200 | Ø280 | Ø350 | Ø400 |
Cutting range(square) | mm | 200x200 | 200x200 | 280x280 | 350x350 | 400x400 |
Overall dimension | mm | 1300*800*1100 | 1400*900*1100 | 1860*1000*1400 | 2000*1100*1500 | 2500*1300*1600 |
we provide 6x12 hours online services every week.We would reply you at first time after receiving your feedback.
We provide 12 months warranty period,If there is any defect because of our quality,we would provide all wearing parts for
Free within warranty period.
We can provide operational video for customer if they don’t familiar with band sawing machine.
We can provide professional design for different requirement ,such as 240V/60HZ
We can provide optional accessories and many other machine
