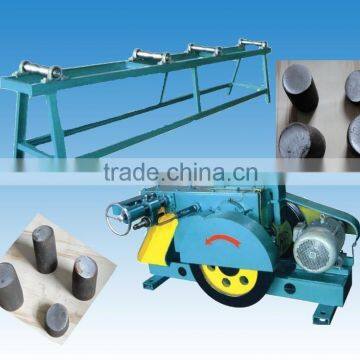

YQ series round bar cutting machine
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | YQ60 | |
| Voltage | 380V | Rated Power | 11KW | |
| Dimension(L*W*H) | 2100*1400*1150mm | Weight | 3T | |
| Certification | CE,ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
This model is a widely used,simple structure,easy to round off machine;the model of the body is welded with steel plateUses and Features:
This model is a widely used,simple structure,easy to round off machine;the model of the body is welded with steel plate,making the model more robust.
How it works:
the use of three-phase induction motor drives the eccentric shaft rotation,led by the eccentric rotation axis connecting rod,connecting rod to drive even the seat,even the seat edge will be driven by dynamic simulation ;scheduled to die by the knife-edge tighten the bolts in the body;stick frame by feeding material into the discharge port,due to the dynamic simulation of transverse shear blade has been cut.in addition,the model also has a thimble body,which can precisely control the length of material cut.
Cut the bar with the model can reduce processing costs,improve efficiency,high precision machining.
YQ Series Shearing Machine Main Technical Data
SPECIFICATION | UNIT | YQ50 | YQ60 | YQ70 | |
Max.shear force | KN | 65 | 160 | 210 | |
Max.cut diameter shear | mm | 10-50 | 15-60 | 20-70 | |
Shearing speed | M/min | 36 | 30 | 25 | |
travel | S/min | 60 | 70 | 80 | |
Gauge range | mm | 45-250 | 52-250 | 52-250 | |
Section tilt |
| ≤4 | ≤4 | ≤4 | |
Cross-section roundness |
| 0.92 | 0.92 | 0.92 | |
Cross-section roundness | g | ±8 | ±10 | ±12 | |
Main motor | model |
| Y160M-6 | Y160L-6 | Y180L-6 |
power | KW | 7.5 | 11 | 15 | |
Feeder
| model |
| 90L-4 | 90L-4 | 90L-4 |
power | KW | 1.5 | 1.5 | 1.5 | |
Overall dimension | mm | 5100*1000*750 | 5100*1000*880 | 5100*1000*990 | |
Reducer
| model |
| WPDA100 | WPDA100 | WPDA100 |
ratio |
| 1:15 | 1:15 | 1:15 | |
Manual feeding rack dimensions | mm | 4200*1000*755 | 4600*1000*875 | 4600*1000*840 | |
Host dimension | mm | 2000*1200*960 | 2100*1400*1150 | 2270*1500*1420 | |
Total weight | T | 2 | 3 | 4 | |
