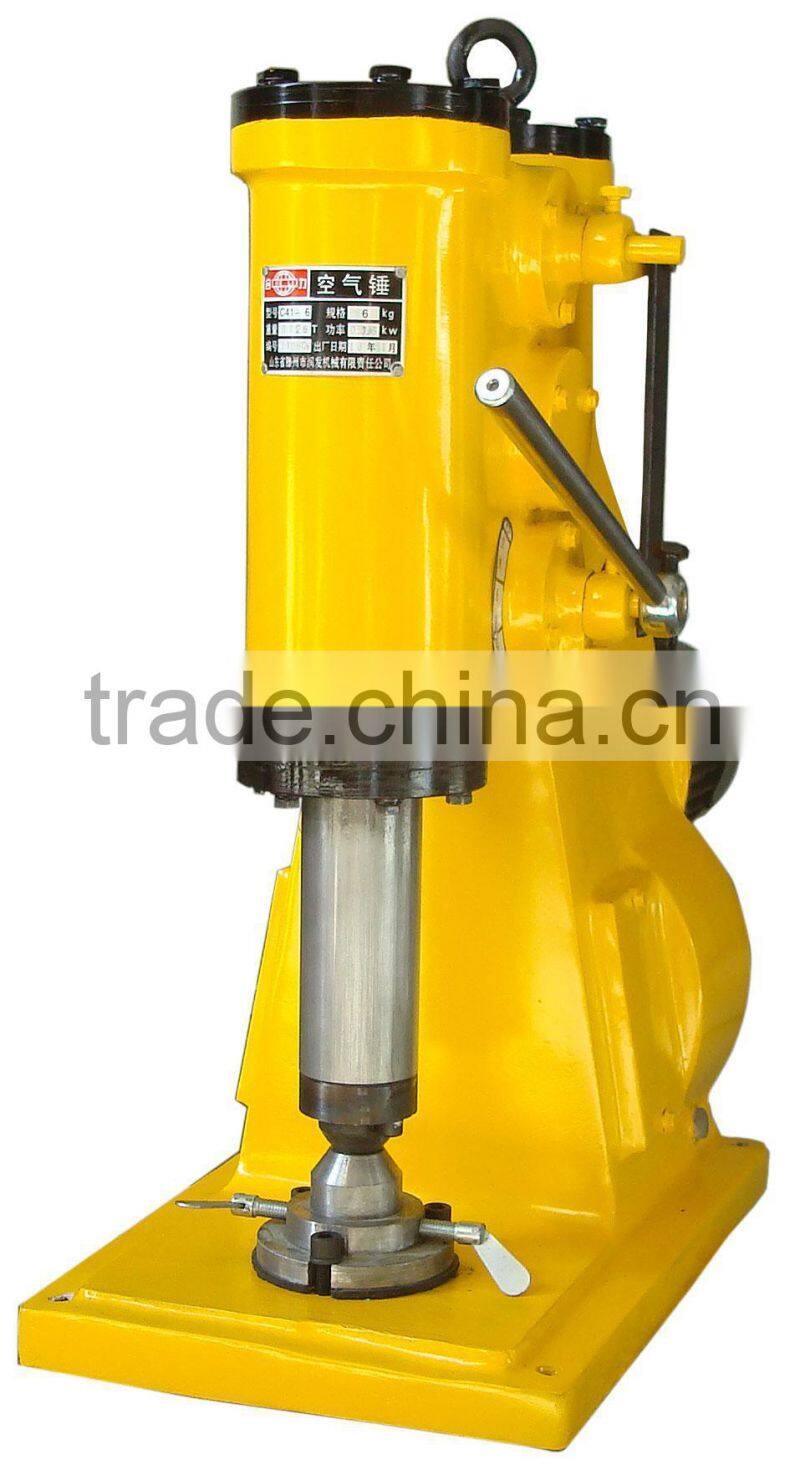

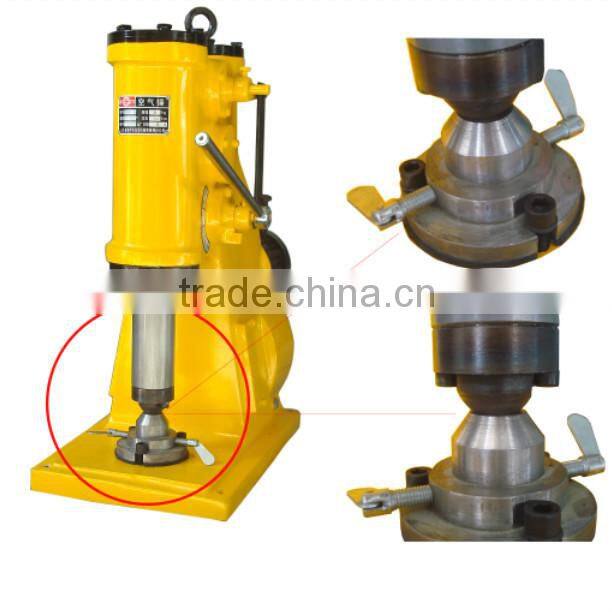

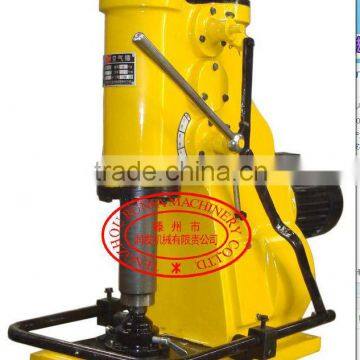

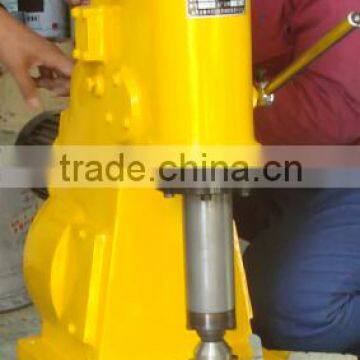

Air Power Hammer Metal Forging Hammer C41-6KG(integrated) Supplier's Choice
- QINGDAO
- T/T
You May Like
-
Air Power Hammer C41-150KG (Blacksmith Hammer)
-
Air Hammer Pneumatic Power Forging Hammer C41-75kg for Sale Supplier's Choice
-
Air Hammer Metal Forging Hammer C41 Series 16kg/20kg/25kg/40kg/55kg/75kg/150kg
-
Air Hammer Wrought Iron Forging Hammer C41-55KG
-
Air Hammer Pneumatic Iron Hammer C41-40KG(SEPARATE)
-
Air Power Hammer Metal Forging Hammer C41-40KG (Integrated)
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-6KG | |
| Voltage | 220V/380V | Power(W) | 750 | |
| Dimension(L*W*H) | 180*340*670MM | Weight | 126KG | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Air Forging Hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling.
Air Forging Hammers of our company are widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. Air Forging Hammer weighted at 6kg, 16kg, 20kg,25kg, 40kg, 55kg, 75kg ,150kg are best used for art blacksmithing such as drawingout, upsetting, punching, chiseling, bending and twisting. Air power Hammer Machine Best Resin Sand Casting Machine Frame with whole machine life quality guarantee againest craftsmanship and material defects, with one full year guarantee on small parts and electrical parts. Air Hammer Machine RUNFA Pneumatic Hammer exported to UK, Germany, France, Sweden, Norway, Italy, Russia, Belgium Turkey, Czechic, Romaina, Greece, USA, Canada, Mexico, Brazil, Paraguay, Chile, Australia, New Zealand, India, Pakistan, Vietnam, Japan, Korea, etc more than 50 countries. Your questions or inquiries are always welcome!
No. | Name. | Unit | C41-6 | ||
1 | Weight of falling parts | Kg | 6 | ||
2 | Max. hit energy | Kj | 0.066 | ||
3 | Hit number | min -1 | 248 | ||
4 | Distance from bottom die surface to bottom surface of lead | mm | 175 | ||
5 | Tup axis to hammer body | mm | 100 | ||
6 | Dimension of top and bottom die surface | mm |
| ||
7 |
Maximum forge | Round piece | mm |
| |
Square piece | mm |
| |||
8 | Distance from bottom die surface to base | mm |
| ||
9
|
Motor | Type |
|
| |
Rate power | kw | 0.75 | |||
speed | r.p.m | 1440 | |||
10 | Overall dimension | mm | 480x340x670 | ||
11 | Anvil weight | Kg | ------- | ||
12 | Total weight | Kg | 126 | ||
ACCESSORIES:
- piston ring of working cylinder.
- Piston ring of compression cylinder
- Operation manual
Tito plywood (fumigation-free) or fumigation
