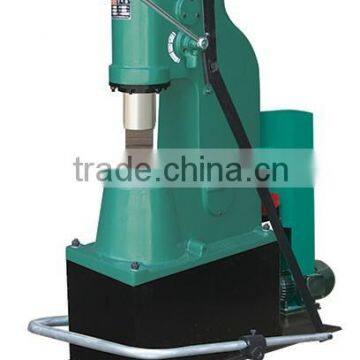

Air hammer pneumatic forging hammerC41-25KG(single with baseplate)
- QINGDAO
- T/T
You May Like
-
Air Hammer Metal Forging HammerC41-40KG(single with baseplate)
-
Blacksmith power forging hammerC41-6KG for sale
-
Air hammer air power toolC41-16KG for sale
-
Air hammerC41 series 6KG/16KG/20KG/25KG/40KG/55KG/75KG/150KG
-
Blacksmith power forging hammerC41-55KG for sale
-
Press hammerC41-40KG(INTEGRATED) Wrought Iron Machinery
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-25KG single with baseplate | |
| Voltage | 220V/380V | Power(W) | 3KW | |
| Dimension(L*W*H) | 1150*510*1400MM | Weight | 640KG | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.simple structure2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance
Specifications
It’s used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion
I would like to suggest our pneumatic forging hammer(power hammer) to you, which is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Our company is the only manufacture of pneumatic forging hammer in Tengzhou , we have 46 years history in producing pneumatic forging hammer, So far, Our Pneumatic Forging Hammers have been exported to Germany, UK, France, Russia, Romania, Slovenia, South Africa, Egypt, Brazil, Mexico, India, Vietnam, Thailand etc more than 50 countries.
The principle of work:
Motor through reduction gear and crank rod driven compression cylinder compression piston moves up and down to produce compressed air.
When the compression cylinder upper and lower airways to the atmosphere,the compressed air does not enter the cylinder,motor idling,
hammer does not work,the handle or lever or pedal down rotary valve,the compressed air into the working cylinder of the upper or lower,
to promote working piston moves up and down,so as to drive the hammer and iron on rise or fall,complete a variety of hit actions.
MAIN TECHNICAL DATA
Item | Unit | Numerical Value | |
Weight of falling parts | kg | 25 | |
Maximum blow energy | J | 270 | |
Distance from center of die to frame | mm | 200 | |
Distance between top and bottom die | mm | 240 | |
Number of blows per minute | min-1 | 250 | |
Dimension of top to bottom | mm | 100*50 | |
Diameter of the working cylinder | mm | 165 | |
Diameter of the compressing cylinder | mm | 170 | |
Travel distance of malleus | mm | 275 | |
Travel distance of plunger | mm | 140 | |
Forges | Round | mm | Φ45 |
| Square | mm | 40 |
Motor | Power | kw | 3 |
| Rotate speed | rpm | 1440 |
Outside Size | Length | mm | 1150 |
| Width | mm | 510 |
| High | mm | 1400 |
Base plate weight | kg | 80 | |
Hammer weight | kg | ~640 | |
