Air hammer
- 267 Set / Sets per Month
- QINGDAO
- T/T
You May Like
-
Air power forging hammer C41series 6kg/20kg/40kg/55kg/150kg
-
(FACTORY) Air power forging Hammer C41 series
-
Air power forging hammer C41 series blacksmith hammer
-
Air hammer C41 series wrought iron forging hammer
-
THE WORLD'S FIRST ORIGINATION!!!Pneumatic Forging Hammer C41-6KG
-
BEST-SELLER!!Air power forging hammerC41-6KG with CE certificated
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-150KG | |
| Voltage | 380V | Power(W) | 15KW | |
| Dimension(L*W*H) | 2080*1240*2350mm | Weight | 5060kg | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Specifications1 Low noise
2 Reasonable structure
3 Convenient operation
4 Suitable for all kinds of forging works
Features:
1.Ready operation: Economic and convenient
2.Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions_idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired
3.A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
C41 series main technical data
Item | Unit | Numerical Value |
| ||||||
Weight of falling parts | kg | 16 | 20 | 25 | 40 | 75 | 150 |
| |
Maximum blow energy | J | 180 | 220 | 270 | 530 | 900 | 2200 |
| |
Distance from center of die to frame | mm | 150 | 180 | 200 | 235 | 300 | 350 |
| |
Distance between top and bottom die | mm | 180 | 200 | 240 | 245 | 300 | 370 |
| |
Number of blows per minute | min-1 | 258 | 270 | 250 | 245 | 210 | 180 |
| |
Dimension of top to bottom | mm | 70*30 | 90*50 | 100*50 | 120*50 | 145*65 | 130*130
|
| |
Diameter of the working cylinder | mm | 115 | 150 | 165 | 200 | 235 | 330 |
| |
Diameter of the compressing cylinder | mm | 125 | 155 | 170 | 205 | 240 | 340 |
| |
Travel distance of malleus | mm | 210 | 200 | 275 | 290 | 345 | 370 |
| |
Travel distance of plunger | mm | 120 | 130 | 140 | 154 | 200 |
|
| |
Forges | Round | mm | ¢22 | ¢35 | ¢45 | ¢68 | ¢85 | ¢145 |
|
Square | mm |
| 30 | 40 | 52 | 65 | 130 |
| |
Motor | Power | kw | 1.5 | 2.0 | 2.2 | 4.5 | 7 | 15 |
|
Rotate speed | rpm |
| 1440 | 1440 | 1440 | 1440 | 1470 |
| |
Outside Size | Length | mm | 584 | 670 | 800 | 1080 | 1600 | 2080 |
|
Width | mm | 390 | 360 | 410 | 600 | 950 | 1240 |
| |
High | mm | 952 | 1050 | 1213 | 1389 | 1950 | 2350 |
| |
Anvil block weight | kg |
| 190 | 247 | 400 | 850 | 1800 |
| |
Hammer weight | kg | ~220 | ~500 | ~720 | ~1400 | ~2800 | ~5060 |
| |
Our Services
1, Your inquiry will be replied in 24 hours;
2. Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 5 years. And there is more industry technology experience for more than 46 years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Professional after-sales service team;
5,Give reasonable offers with the best quality.

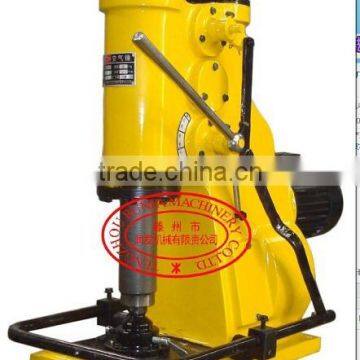

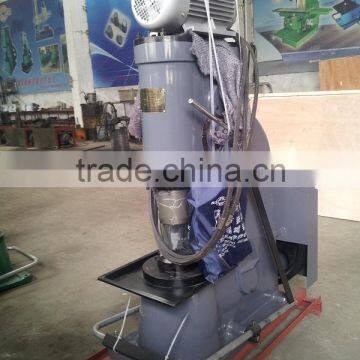

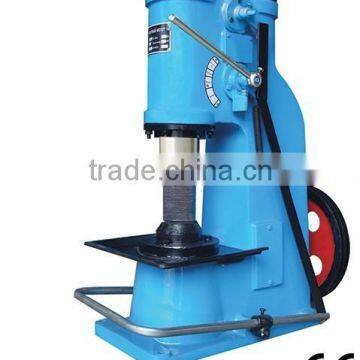

PICTURES DISPLAY
