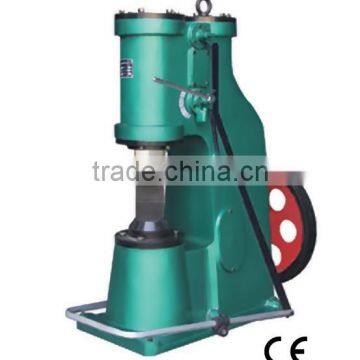

Press hammerC41-40KG(INTEGRATED) Wrought Iron Machinery

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	C41-40KG(INTEGRATED)
Voltage	380V	Power(W)	4KW
Dimension(LWH)	10806001430MM	Weight	880KG
Certification	CE	Warranty	12 months
After-sales Service Provided	Overseas service center available

1.simple structure
2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance

Specifications

1.durable and great power

2.easy installation and operation

nvenient maintenance

fessional hammer die upon your need

The principle of work:

Motor through reduction gear and crank rod driven compression cylinder compression piston moves up and down to produce compressed air.

When the compression cylinder upper and lower airways to the atmosphere,the compressed air does not enter the cylinder,motor idling,

hammer does not work,the handle or lever or pedal down rotary valve,the compressed air into the working cylinder of the upper or lower,

to promote working piston moves up and down,so as to drive the hammer and iron on rise or fall,complete a variety of hit actions.

MAIN TECHNICAL DATA

Item		Unit	MODEL NO.
Weight of falling parts		kg	40
Maximum blow energy		J	530
Distance from center of die to frame		mm	235
Distance between top and bottom die		mm	245
Number of blows per minute		min-1	245
Dimension of top to bottom		mm	120*50
Diameter of the working cylinder		mm	200
Diameter of the compressing cylinder		mm	205
Travel distance of malleus		mm	290
Travel distance of plunger		mm	154
Forges	Round	mm	Φ68
	Square	mm	52
Motor	Power	kw	4
	Rotate speed	rpm	1440
Outside Size	Length	mm	1080
	Width	mm	600
	High	mm	1430
Hammer weight		kg	~880

PICTURES DISPLAY
