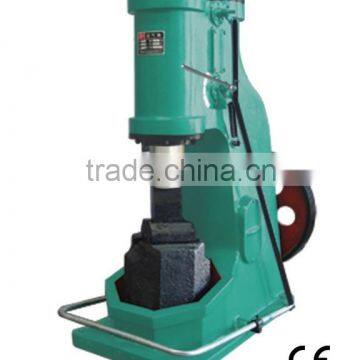

Blacksmith power forging hammerC41-55KG for sale
- 241 Set / Sets per Month
- QINGDAO
- T/T
You May Like
-
Press hammerC41-40KG(INTEGRATED) Wrought Iron Machinery
-
Air power hammerC41-25KG(SEPARATE) pneumatic hammer price
-
Air hammer Wrought iron forging hammerC41-25KG(INTEGRATED)price
Supplier's Choice
-
Wrought iron machineryC41-25KG AIR FORGING HAMMER
-
Air power hammerC41-55KG wrought iron machinery
-
Small air hammer CE approved forging hammerC41 series
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-55KG | |
| Voltage | 380V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 1320*670*1620mm | Weight | 1700kg | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.simple structure2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance
Specifications
1.durable and great power
2.easy installation and operation
nvenient maintenance
fessional hammer die upon your need
Blacksmith power forging hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Blacksmith power forging hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
MAIN TECHNICAL DATA
Item | Unit | MODEL NO. | |
Weight of falling parts | kg | 55 | |
Maximum blow energy | J | 700 | |
Distance from center of die to frame | mm | 270 | |
Distance between top and bottom die | mm | 265 | |
Number of blows per minute | min-1 | 230 | |
Dimension of top to bottom | mm | 120*50 | |
Diameter of the working cylinder | mm | 215 | |
Diameter of the compressing cylinder | mm | 220 | |
Travel distance of malleus | mm | 265 | |
Travel distance of plunger | mm | 140 | |
Forges | Round | mm | Φ68 |
| Square | mm | 52 |
Motor | Power | kw | 5.5 |
| Rotate speed | rpm | 1440 |
Outside Size | Length | mm | 1320 |
| Width | mm | 670 |
| High | mm | 1620 |
Anvil block weight | kg | 600 | |
Hammer weight | kg | ~1700 | |
