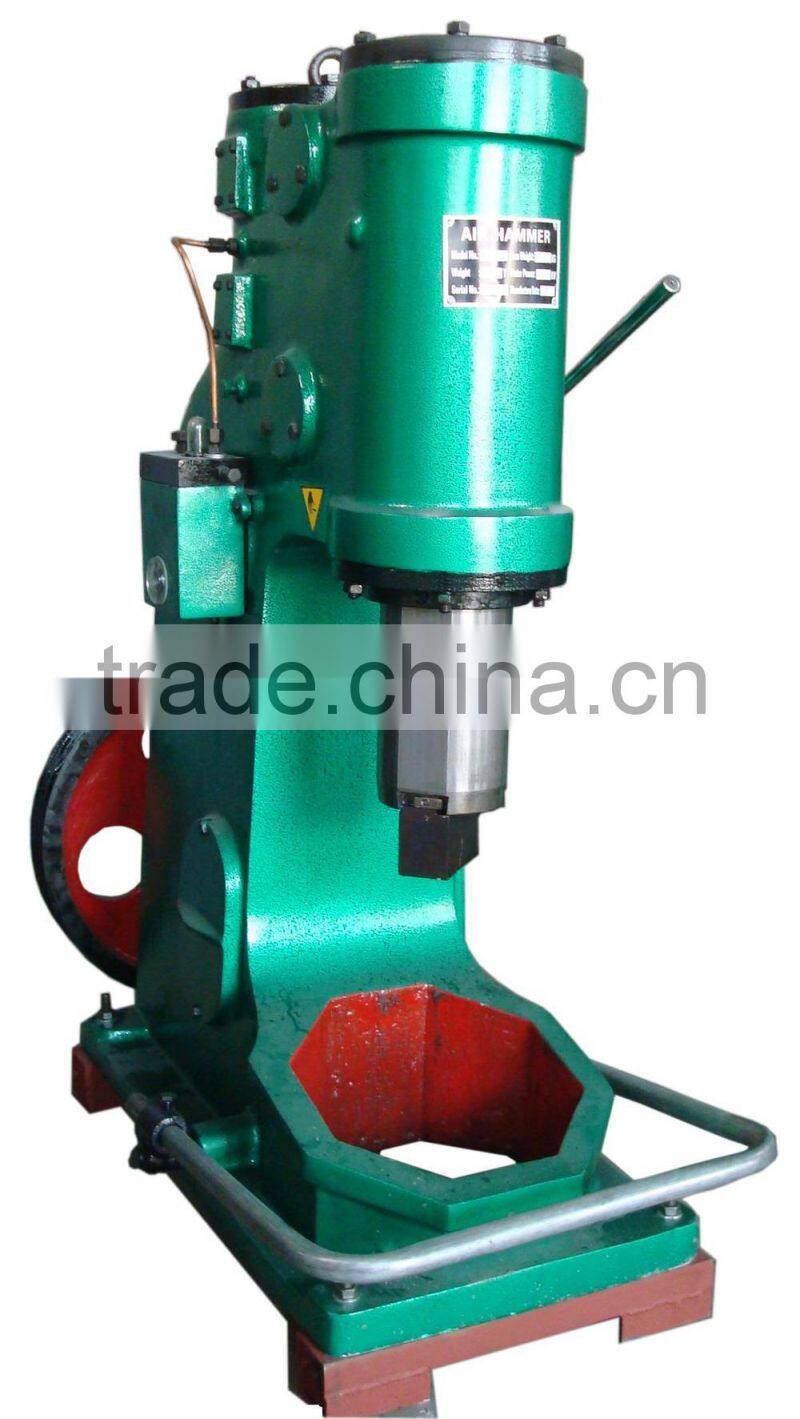

Air Hammer Pneumatic Forging Hammer C41-25KG (SEPARATE)
- QINGDAO
- T/T
You May Like
-
Air Forging Hammer C41-20KG(SEPARATE) Pneumatic Iron Hammer
-
Air Hammer Metal Forging HammerC41-20KG(INTGRATED)
-
Air Hammer Pneumatic Forging HammerC41-16KG(INTEGRATED)
-
Air Hammer Pneumatic Forging HammerC41-16KG(single With Baseplate)
-
Air Hammer Metal Forging HammerC41-20KG(single With Baseplate)
-
Air Hammer Pneumatic Forging HammerC41-25KG(single With Baseplate)
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-25KG | |
| Voltage | 380v | Power(W) | 3kw | |
| Dimension(L*W*H) | 900*510*1200mm | Weight | 760kg | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Wrought iron Forging Hammer is widely used for general forging works, such as upsetting, punching, chiseling and twisting.

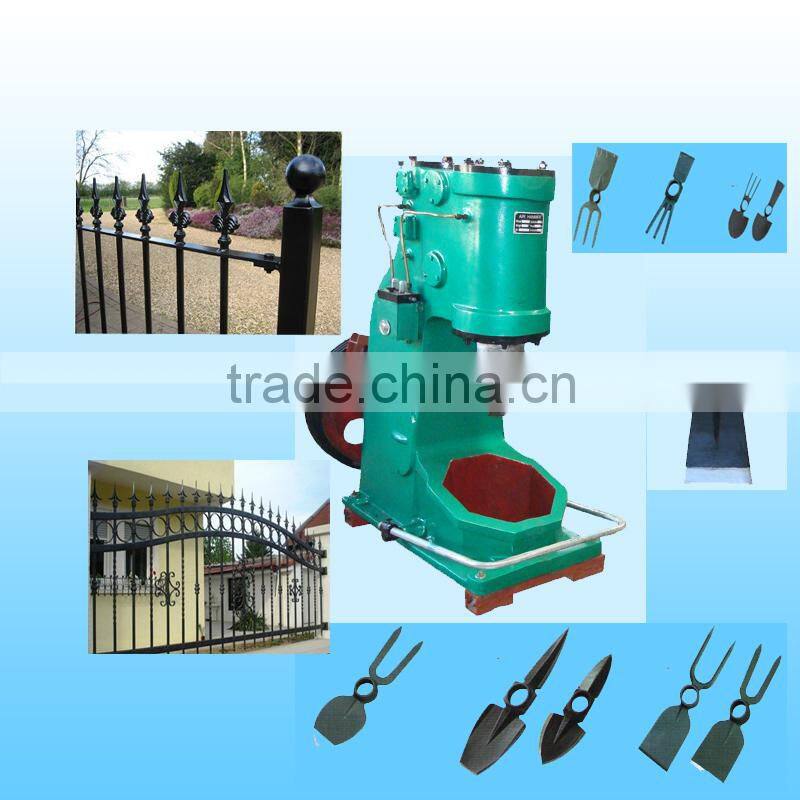

Wrought iron Forging Hammer RAM weight at 6kg, 16kg, 20kg,25kg, 40kg, 55kg, 75kg ,150kg are best used for art blacksmithing such as drawing-out, upsetting, punching, chiseling, bending and twisting. Wrought iron Hammer Machine Best Resin Sand Casting Machine Frame with whole machine life quality guarantee againest craftsmanship and material defects, with one full year guarantee on small parts and electrical parts. Wrought Iron Hammer Machine exported to UK, Germany, France, Sweden, Norway, Italy, Russia, Belgium Turkey, Greece, USA, Canada, Mexico, Brazil, Paraguay, Chile, Australia, India, Pakistan, Vietnam, Japan, Korea, etc more than 50 countries. Your questions or inquiries are always welcome!
Main Technical Data
Item | Unit | Numerical Value | |
Weight of falling parts | kg | 25 | |
Maximum blow energy | J | 270 | |
Distance from center of die to frame | mm | 200 | |
Distance between top and bottom die | mm | 240 | |
Number of blows per minute | min-1 | 250 | |
Dimension of top to bottom | mm | 100*50 | |
Diameter of the working cylinder | mm | 165 | |
Diameter of the compressing cylinder | mm | 170 | |
Travel distance of malleus | mm | 275 | |
Travel distance of plunger | mm | 140 | |
Forges | Round | mm | Φ45 |
| Square | mm | 40 |
Motor | Power | kw | 2.2 |
| Rotate speed | rpm | 1440 |
Outside Size | Length | mm | 900 |
| Width | mm | 510 |
| High | mm | 1200 |
Anvil block weight | kg | 250 | |
Hammer weight | kg | ~760 | |
Pictures Display
