Home > Products > Heavy-duty Horizontal Lathe-Manual&CNC > CWA6185x6000 4 tons load heavy duty lathe machine Quality Choice

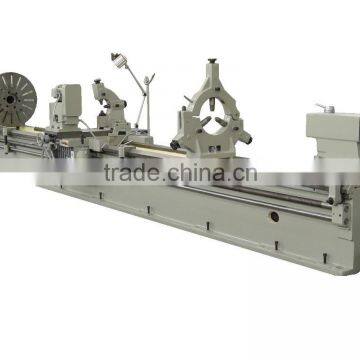

CWA6185x6000 4 tons load heavy duty lathe machine Quality Choice

FOB Price

US$ 38,500 - 40,860 / Set

1 Set(Min. Order)

Port Dalian/Tianjing/Shanghai/Qingdao China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	850mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CWA6185x6000 heavy duty lathe machine
Voltage	Customer's Requirement	Power(W)	15kW
Dimension(LWH)	8,150x1,500x1,500mm	Weight	10300kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CWA6185x6000 heavy duty lathe machine

Main Features

Such heavy duty lathe machines have following features:

1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.

2. can also be used for drilling, boring trepanning etc.

3. gap lathe can process the deformation parts;

4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.

5. threads types: Metric, inch, diametrical pitch, module thread

6. DRO is avaible;

Main Technical Data

Specifications	Unit	Parameter
Swing over Bed	mm	850
Max. swing over carriage	mm	520
Max. length of work piece	mm	6000
Max. length of work-piece to be turned	mm	5800
Width of Guide way	mm	600
Max. supporting capacity of centers	kg	4000
Spindle Nose		A2-11
Spindle Bore	mm	100
No. of Spindle Speed Ranges		64
Spindle Speed	rpm	5 ~ 630 (4 Steps)
Longitudinal	mm	0.08~9.6
Cross slide	mm	0.04 ~ 4.9
Compound slide	mm	0.02 ~ 2.4
Metric Thread	mm	1~120 (56 Kinds)
Whitworth Thread	TPI	30~1/4 (56 Kinds)
Module Thread	mm	0.5~60 (56 Kinds)
Diametrical Thread	DP	1/2~60 (56 Kinds)
Rapid traverse speed longitudinal	mm/min	3640
Rapid traverse speed cross	mm/min	1800
Dia. Of tailstock	mm	120
Max. movement of tailstock sleeve	mm	250
Taper hole of tailstock quill		MORSE No. 6
Power of main motor	kW	15
Net dimension of the maching	mm	8,150×1,500×1,500
Packing dimension of the maching	mm	8,500×1,900×1,780
GW/NW	kg	10,300 / 12,200

Free Std Accessories

Name	Size	Note
4 jaw chuck	Dia. 800 mm	1 Set
Steady rest	Range 40~350 mm	1 Set
Follow rest	Range 30~120 mm	1 Set
Dead center		2 Pcs
Reducing sleeve		1 Pcs
Living center		1 Set
Automatic lubrication for guideways		Yes
Cooling system		Yes
Work light		Yes
Special tools		yes
English operating manual		1 Set

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

Factory Overview

kinds of colors for your choice/can be customized
