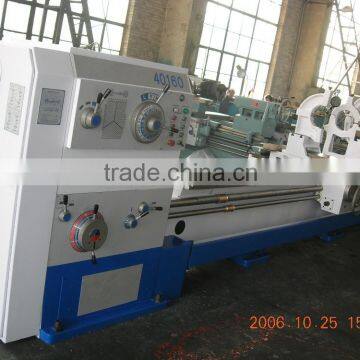

CW61100Ex8000 10 tons load heavy duty lathe machine price
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CW61100Ex6000 10 tons load horizontal heavy duty lathe machine
-
CQ62100x5000 3000kgs load light duty lathe machine
-
CQ62100x6000mm 3000kgs load light duty conventional lathe machine
-
CW61140M heavy duty horizontal lathe machine
-
CW61200x2000 10 tons load china heavy duty lathe machine
-
CWA6185x7000 4 tons load heavy duty engine lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | CW61100Ex8000 heavy duty lathe machine | |
| Voltage | Customer's Requirement | Power(W) | 22kW | |
| Dimension(L*W*H) | 11100x1810x1790mm | Weight | 15800kgs | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CW61100Ex8000 heavy duty lathe machine
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
Specifications | Unit | Parameter |
Swing over Bed | mm | 1000 |
Max. swing over carriage | mm | 650 |
Max. length of work piece | mm | 8000 |
Max. length of work-piece to be turned | mm | 7800 |
Width of guide way | mm | 755 |
Max. supporting capacity of centers | T | 10 |
Max. swing over gap | mm | 1250 |
Width of gap from faceplate | mm | 610 |
Spindle nose |
| ISO A2-15 |
Spindle bore | mm | 100 |
Number of feeds and range |
| 97 |
Spindle Speed | rpm | 3.15 ~ 315, 21 steps |
Longitudinal Feed | mm/rev | 0.64 ~2 |
Cross slide | mm | 0.032 ~ 6 |
Compound slide | mm | 0.016 ~ 3 |
No. and range metric thread | mm | 1~120, 45 kinds |
No. and range of inch thread | TPI | 30~1/4, 42 kinds |
No. and range of module thread | mm | 0.5~60, 46 kinds |
No. and range diametrical thread | DP | 0.5~60, 48 kinds |
Max. travel of cross slide | mm | 520 |
Travel of tailstock sleeve | mm | 300 |
Dia. Of tailstock sleeve | mm | 200 |
Max. movement of tailstock sleeve | mm | 300 |
Taper of tailstock sleeve mores |
| No. 6 |
Power of main motor | kW | 22 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Power of cooling motor | kW | 0.15 |
Net dimension of the machine | mm | 11100×1810×1790 |
Packing dimension of the machine | mm | 11360×1950×2280 |
GW/NW | kg | 15800 / 18900 |
Name | Size | Note |
4 Jaw chuck | Dia. of 1000 mm | 1 set |
Steady rest | Range 50 ~ 470 mm | 1 set |
Follow rest | Range 50 ~ 220 mm | 1 set |
Dead center |
| 2 Pcs |
Reducing sleeve |
| 1 Pcs |
Living center |
| 1 set |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
1. Taper turning device
2. Motorized tailstock
3. DRO Display for both directions
4. Support with two rollers
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
kinds of colors for your choice/can be customized
