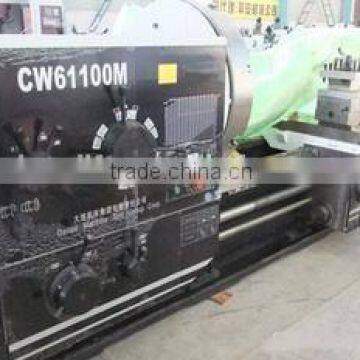

CW61100M 5000kgs Load Heavy-duty Manual Lathe Machine
USD $28,022 - $51,978
/ Set
1 Set(Min.Order)
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CW61100x8000 4 tons load heavy duty lathe machine for sale
-
CW61100Ex8000 10 tons load heavy duty lathe machine price
-
CW61100Ex6000 10 tons load horizontal heavy duty lathe machine
-
CQ62100x5000 3000kgs load light duty lathe machine
-
CQ62100x6000mm 3000kgs load light duty conventional lathe machine
-
CW61140M heavy duty horizontal lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CW621100Mx1000~6000mm | |
| Voltage | 220V 380V 400V 415V 440V 480V | Certification | ISO9001:2008; GB/T19001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CW61100M Heavy-duty Manual Lathe Specifications
Machine Features
- Compound sliding plate is provided, so parts in taper can be turned;
- Standard spindle head: A2-15, spindle bore: 130mm
- Headstock contains hydraulic clutch and hydraulic brake
- Guide rail width:750mm
- Largest load capacity between 2 core clamper (with steady rest): up to 5000kg
- Order notice must be specified with: condition of installed taper imitated shape device
- Guide rail hardness:HRC50, Depth1.5mm
- Only provide left-hand wheel
- Vertical and horizontal rapid shift handle for slide board boxes
- Tailstock sleeve with a dividing rule should be specially annotated.
Specifications | Unit | Parameter |
Swing over Bed | mm | 1000 |
Max length of work piece | mm | 3000 |
Swing in Gap | mm | 1400 |
Width of Gap | mm | 600 |
Width of Guide way | mm | 755 |
No. of Spindle Speed Ranges |
| 21 |
Max. travel of cross slide | mm | 520 |
Spindle Speed | mm/min | 3.15~315 |
Spindle Bore | mm | 130 |
Spindle Nose |
| D13 |
Longitudinal Feed | mm/rev | 0.1~12 |
Cross Feed | mm/rev | 0.05~6 |
Metric Thread | mm | 1~120 |
Module Thread | mm | 0.5~60 |
Whitworth Thread | TPI | 28~1/4 |
Diametrical Thread | DP | 1/2~56 |
Max. Travel of Top Slide | mm | 300 |
Main Motor Power | kW | 22 |
Cross weight | kg | 11,500 |
Net weight | kg | 14,530 |
Bottom size of metal packing | cm | 630x220x225 |
Free Standard Accessories
Name | Size | Note |
4 Jaw chuck | Φ1000 mm | For CW61100 M |
Steady rest | Φ50~Φ470 mm | For CW61100 M |
Follow rest | Φ50~Φ220 mm | For CW61100 M |
Oil gun | Yes |
|
Anchor bolt | Yes |
|
Activity coreclamper | Yes |
|
Wrench Tool | Yes |
|
