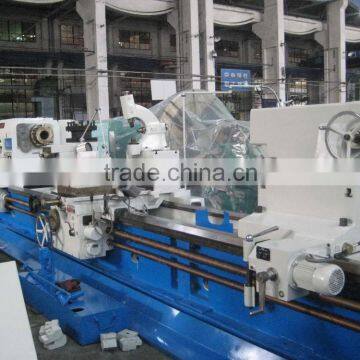

CW61140 Heavy duty Horizontal Lathe

FOB Price

USD $78,022 - $94,978 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Semi-Automatic
Max. Swing Diameter	1400mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CW62140x1500~10000mm
Voltage	220V/380V/415V/440V/480V 50/60Hz	Power(W)	22kW
Certification	ISO9001:2008; GB/T19001:2008; CE	After-sales Service Provided	Engineers available to service machinery overseas

CW61140 Heavy duty Horizontal Lathe

Specifications	Unit	Parameter
Swing over Bed	mm	1400
Max. swing over carriage	mm	1100
Max. length of work piece	mm	8000
Width of guide way	mm	755
Diameter of spindle front bearing	mm	200
travel of cross slide	mm	880
Max. Cutting length	m	7.8
Spindle hole through	mm	130
Max. supporting capacity of centers	kg	6000
Spindle nose		ISO A2-15
Taper hole of spindle		Metric No.140
Spindle bore	mm	130
Spindle Speed	rpm	3.15~315
Swivel angle of tool post		±90°
Travel of longitudinal tool post	mm	200
Metric Thread	mm	1~120(45)
Whitworth Thread	TPI	30~1/4(42)
Module Thread	mm	0.5~60(46)
Diametrical Thread	DP	1/2~60(48)
Longitudinal number and range of feeds	m/rev	0.064~12(97)
Transverse number and range of feeds	m/rev	0.032-6(97)
Dia. Of tailstock	mm	160
Max. movement of tailstock sleeve	mm	300
Taper of tailstock		No. 80
Section of tool shank	mm	45×45
Power of main motor	kW	22
Power of rapid motor	kW	1.5
Power of pump motor	kW	0.55
Power of cooling motor	kW	0.15
Net dimension of the machine	mm	11360×2100×2300
Packing dimension of the machine	mm	11660×2200×2230
GW/NW	kg	16200 / 19600

FREE STANDARD ACCESSORIES
