LFM Series High precision centerless grinder machine for sale Quality Choice
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A
You May Like
-
CE Hydraulic Cylindrical Grinding Machine
-
M1332x2000 Semi-auto Cylindrical Grinding Machine
-
CE Certified Universal Cylindrical Grinding Machine Hot-sale M1332B
-
MK4132x1000 cnc cylindrical/internal grinding machine for sale
-
M8612x1500 spline shaft grinding machine at lower price
Quality Choice
-
M8612x2000 spline shaft grinder made in China
Product Details
| Condition | New | Type | Other, Centerless Grinder Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 120mm | |
| Max. Grinding Length | Undefined | Place of Origin | Guangdong, China | |
| Brand Name | LFM | Model Number | LFM-1206T/1206S LFM-1808T/1808S LFM-1808T/1810S LFM-1812T/1812S | |
| Voltage | Customer's Requirement | Power(W) | 5.5~15kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

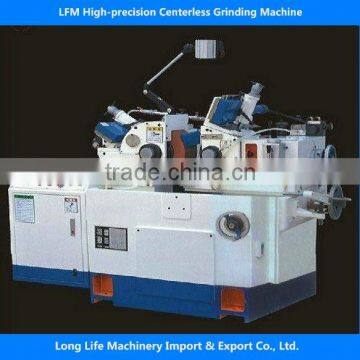

LFM Series High-precision centerless grinder machine
1. Roundness: ≤0.001mm;
2. Straightness: ≤0.002mm
3. Roughness: ≤0.2Ra
4. Size accuracy: ≤0.002mm
Specifications | Unit | HFC-1206/1206S | HFC-1208T/1208S | HFC-1808T/1808S | HFC-1810T/1810S | HFC-1812T/1812S |
Standard work rest (Dia.) | mm | Φ1 ~ Φ35 | Φ1 ~ Φ35 | Φ1 ~ Φ50 | Φ1 ~ Φ50 | Φ1 ~ Φ50 |
Special work rest (dia.) | mm | Φ40 ~ Φ60 | Φ40 ~ Φ60 | Φ40 ~ Φ120 | Φ40 ~ Φ120 | Φ40 ~ Φ120 |
Grinding wheel size | mm | Φ305 x 150 x Φ120 | Φ305 x 20 x Φ120 | Φ455x 205 x Φ228.6 | Φ455x 255 x Φ228.6 | Φ455x 305 x Φ228.6 |
Regulating wheel size | mm | Φ305 x 150 x Φ90 | Φ305 x205 x Φ120 | Φ255x 205 x Φ111.2 | Φ255x 255 x Φ111.2 | Φ255x 305 x Φ111.2 |
Grinding wheel speed | rpm | 1950 | 1950 | 1520 | 1520 | 1520 |
Regulating wheel speed | rpm | 0~300 | 0~300 | 0~260 | 0~260 | 0~260 |
Grinding wheel motor | kW | 5.5 (7.5HP) | 7.5 (10HP) | 11 (15HP) | 15 (20HP) | 15 (20HP) |
Regulating wheel motor | kW | 2(2.6 HP) | 2(2.6 HP) | 3(4HP) | 3(4HP) | 3(4HP) |
Hydraulic pump motor | kW | 0.75(1HP) | 0.75(1HP) | 0.75(1HP) | 0.75(1HP) | 0.75(1HP) |
Coolant pump motor | W | 90(1/8HP) | 90(1/8HP) | 180(1/4HP) | 180(1/4HP) | 180(1/4HP) |
Regulating wheel feed-on hand wheel | mm /rev | 3.5 (0.05mm / Gra) | 3.5 (0.05mm / Gra) | 3.5 (0.05mm / Gra) | 3.5 (0.05mm / Gra) | 3.5 (0.05mm / Gra) |
Regulating micro feed-on hand wheel | mm /rev | 0.1 (0.01mm / Gra) | 0.1 (0.01mm / Gra) | 0.1 (0.01mm / Gra) | 0.1 (0.01mm / Gra) | 0.1 (0.01mm / Gra) |
Table feed on hand wheel | mm /rev | 7 (0.05mm / Gra) | 7 (0.05mm / Gra) | 9 (0.10mm / Gra) | 9 (0.10mm / Gra) | 9 (0.10mm / Gra) |
Table micro feed on hand wheel | mm /rev | 0.2 (0.001mm / Gra) | 0.2 (0.001mm / Gra) | 0.2 (0.001mm / Gra) | 0.2 (0.001mm / Gra) | 0.2 (0.001mm / Gra) |
Dressing hand wheel | mm /rev | 1.5 (0.01mm / Gra) | 1.5 (0.01mm / Gra) | 1.5 (0.01mm / Gra) | 1.5 (0.01mm / Gra) | 1.5 (0.01mm / Gra) |
Regulating wheel tilt angle |
| +5° ~ -3° | +5° ~ -3° | +6° ~ -5° | +6° ~ -5° | +6° ~ -5° |
Regulating wheel swivel angle |
| ±5° | ±5° | ±6° | ±6° | ±6° |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
