M1332x1500 semi auto cylindrical grinding machine for sale

FOB Price

US$ 24,300 - 25,603 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cylindrical Grinding Machine
CNC or Not	Normal	Max. Grinding Diameter	320mm
Max. Grinding Length	1500mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	M1332x1500 cylindrical grinding machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	15kW
Dimension(LWH)	4400x1620x1500mm	Weight	3900kgs
Certification	CE; ISO9001:2008; GB/T 19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

M1332x1500 Semi-auto cylindrical grinding machine

Main Usage

suitable for grinding cylindrical or conical parts for its accuracy IT6-IT5,

and adaptable for batch or mass production;

Main Features

Wheel bearings hybrid bearing, high accuracy and good rigidity;

The first frame spindle driven by a DC motor, variable speed within the speed range.

Tailstock by a dense ball in the form of its rigidity.

With a grinding machine indicator to facilitate high-precision grinding of the workpiece.

Working Accuracy

Roundness: 0.0015mm

Dia. Uniformity in the long. Section: 0.005mm

Surface roughness: Ra0.32mm

Main Technical Data

Specifications		Unit	Parameter
Outside diameter grinding	Use Center Frame	mm	Min/Max: 10/60
Outside diameter grinding	No Center Frame	mm	Min/Max: 8/320
Inside diameter grinding	Use Center Frame	mm	Min/Max: 30/125
Inside diameter grinding	No Center Frame	mm	Min/Max:16/125
Max. Workpiece Weight		kg	150
Max. Grinding Length		mm	1500
Distance between centers		mm	1500
Height of center		mm	180
Max. Grinding Length when dressing wheel on tailstock		mm	250/750/1250/1750/2750
Max. upper worktable swing angle			C.W.: 3°/3°/3°/3°/2°/1.5°
Max. upper worktable swing angle			CC.W.: 3°/1.5°
Max. upper worktable travel		mm	1050
Wheel dimensions (O.D. x W x I.D.)		mm	Max. Φ600 x 75 x Φ305
Wheel dimensions (O.D. x W x I.D.)		mm	Worn toΦ450 x 75 x Φ305
Peripheral Speed of Grinding Wheel		m/s	35/35/35/35/35/17.5/17.5
Wheel Spindle Speed		r/min	1100
Max. leadscrew travel		mm	231
Rapid advance and withdrawal amount		mm	50
Wheelhead displacement per rev. of handwheel		mm	Coarse / Fine: 2/0.5
Wheelhead displacement per div of handwheel		mm	Coarse / Fine: 0.001/0.0025
Motor total power		kW	14.55
Wheel peripheral velocity		m/s	35/17.5
Max. Transferred Quantity (Fast-moving Included)		mm	241
Rapid Advance and Retreat for Grinding Carriage		mm	25
Wheel Spindle Speed( HJX33-03A)		r/min	10000/15000
Machine Size (L×W×H)		mm	4400×1620×1500
Packing Size (L×W×H)		mm	4380×2250×2000
Gross/Net		kg	3900/4700

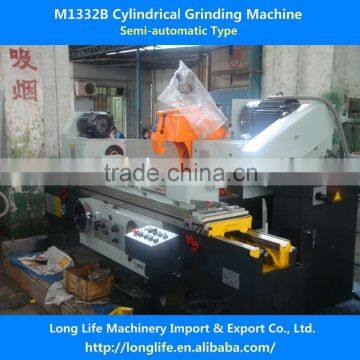

Real Photos&Package
