M1320x1000 cylindrical grinding machine with CE
- Dalian Shanghai China
- T/T L/C D/P D/A
You May Like
-
M1320Ax500 cylindrical grinding machine with CE
-
MK1350x3000 high class cnc cylindrical grinding machine fo sale
-
SG2050 CE hydraulic surface grinding machine for sale
-
SG250 manual surface grinding machine
-
LFM Series High precision centerless grinder machine for sale
Quality Choice
-
CE Hydraulic Cylindrical Grinding Machine
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 200mm | |
| Max. Grinding Length | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | M1320Ax1000 cylindrical grinding machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 5.5kW | |
| Dimension(L*W*H) | 3000x1800x1650mm | Weight | 3540kgs | |
| Certification | CE; ISO9001:2008; GB/T 19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

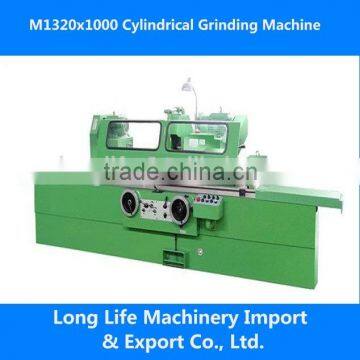

M1320x1000 cylindrical grinding machine
This machine is plain cylindrical grinder, which is mainly used for grinding cylindrical and conical surface of parts, ideal for tool, repair and small & medium-batch workshop.
Worktable longitudinal traverse is actuated at infinitely variable speed by hydraulic means or by hand operation. Wheelhead cross feed is provided with hyd. rapid approach & withdrwal, manual feed. Workpiece, grinding wheel, oil-pump, coolant pump are driven separately by their individual motors.
Can be used in tool workshop, repair workshop, research& study institute and medium-sized and small factory, etc.
Roundness: 0.0015mm
Dia. Uniformity in the long. Section: 0.005mm
Surface roughness: Ra0.32mm
Specifications | Unit | Parameter |
Grinding capacity | mm | Φ200×1000 |
Grinding diameter with steady-rest min/max | mm | 8/60 |
Without steady-rest min/max | mm | 8/200 |
Max. work weight | kg | 50 |
Max. grinding length | mm | 750 |
Center height | mm | 135 |
Distance between centers | mm | 1000 |
Max. grinding length when dressing wheel on tailstock | mm | 900 |
Wheel spindle speed 50Hz | m/s | 35,50,70,100,140,280 |
Wheel spindle speed 60Hz | m/s | 42,60,84,120,168,336 |
Wheel dimensions (O.D.×W×I.D) | mm | Max: Φ400×50×Φ203 |
Wheel dimensions (O.D.×W×I.D) | mm | Min: Φ300×50×Φ203 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead spindle speed | r/min | 1670 |
Wheelhead displacement | mm | Max: 250 |
Wheelhead rapid advance & withdrawal | mm | 50 |
Max. worktable longitudinal travel | mm | 1050 |
Total motor power | kW | 5.43 |
Overall dimensions (L×W×H) length =1000mm | mm | 3000×1800×1650 |
Machine weight | kg | 3540 |
