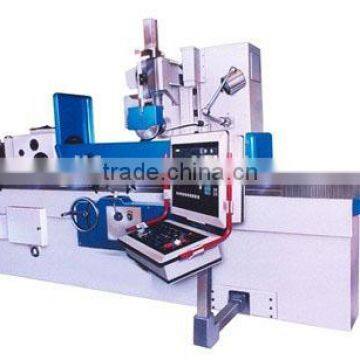

M7160x1000 CE semi auto surface grinding machine
- Shanghai China
- T/T L/C D/P D/A
You May Like
-
M1432x1500 Universal Cylindrical Grinding Machine
-
Catalouge of M13/14 cylindrical grinding machine
-
M1332x1500 semi auto cylindrical grinding machine for sale
-
MK1350x1500 high class cnc cylindrical grinding machine fo sale
-
M1432x3000 Universal Cylindrical Grinding Machine
-
SG Series CE hydraulic surface grinding machine
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 350mm | |
| Max. Grinding Length | 3000mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | M7150x1000 surface grinding machine | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 2500x5800x2100 | Weight | 5500kgs | |
| Certification | CE; ISO9001:2008; GB/T 19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Such surface grinding machine has following features:
l It has higher accuracy and cutting efficiency.
l Vertical movable type wheelhead can load heavier workpiece than saddle type.
l The table in longitudinal movement driven by the vane pump, stability and low noise, easy opration.
l The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983).
l Grinding head has rapid movements mechanism invertical movement, but also manually feed.
l Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
l Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards.
l CE Standard and CE Certificate;
Pl, Accuracy of test piece among grinding center
Accuracy of long test piece
a)Circular degree: 0.002mm
Consistency for diameters: 0.005mm
P1, long test piece Ra 0.04μm
Short test piece Ra 0.01μm
P2, is Ra 0.02μm
P3, is Ra 0.04μm
Specifications | Unit | Parameter |
working area | mm | 1000×600 |
Longitudinal table travel | mm | 1300 |
Cross feed saddle travel | mm | 640 |
Distance from spindle center to table | mm | 700 |
Max. workpiece weight | kg | 1000 |
T-slots | mm×N | 16×3 |
Longitudinal table speed | m/min | 5~25 |
Cross feed on hand wheel | mm/gra. | 0.02 |
Cross feed on hand wheel | mm/rev. | 5 |
Table rapid cross feed | mm/min | 0.5~12 |
Table auto cross feed | mm/min | 1250 |
Wheel dimension | mm | 400×40×127 |
spindle speed | rpm | 1450 |
Max. vertical movement | mm | 650 |
Vertical on hand wheel | mm/gra. | 0.005 |
Vertical on hand wheel | mm/rev. | 0.25 |
Auto down feed increment | mm | 0.002~0.04 |
Rapid elevating | mm | 230 |
Spindle motor | kW | 7.5 |
Vertical driving motor | W | 180 |
Hydraulic motor | kW | 5.5 |
Coolant motor | W | 90 |
Cross feed motor | W | 80 |
Machine height | mm | 2400 |
Floor space | mm | 2500×5800 |
Net weight | kg | 5500 |
Gross weight | kg | 6500 |
