bag making machine with gusset

Brief Introduction

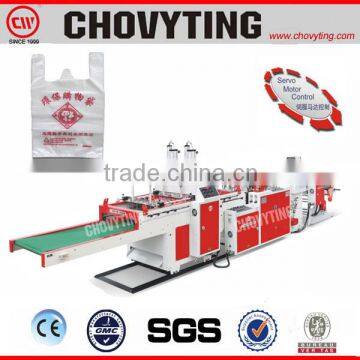

New designed super high speed T-shirt bag making machine,is specially for making T-shirt bags,which it two lines and three lines high speed production,easy to operate,high output,special servo motor driving.

Main Features

1.Unwinding tension with AC inventer automatic control.
2.Easy operate and adjustment side fold device.
3.Turnover sealing knife,easy clean design.
4.The whole set of bags has design of swaying,no paste between two bags mouth.
5.Multiterm automatic warning,automatic stop design.

Optional

1.Two line hot slitting device +ST2 ( 2 line printing bags ).
2.Three line hot slitting device +ST3 ( 3 line printing bags ).

Unwinding Part

1.Unwinding adopts air cylinder automatic load design.

2. Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.
3. Unwinding shaft adopts heavy-chain air shaft.
4. Unwinder part has EPC and automatic tension control.
5. Automatic stop design when rolls film finish or damage.

Automatic EPC control

1.This device special for this high speed model .
2.When roll film feeding so fast that the film will move little left and right, with this EPC device to be control the film feeding corrected to the right position.
3.This EPC system will enhance the productivity of machine .
4.One set EPC system to control two lines.

Sealing and cutting knife device

1.Sealing knife “turnover” device ,which easy to clean the knife ,which is better to keep the maintenance easy.
2.The whole set of bags has design of swaying ,no paste between two bags mouth (ITALY DESIGN).
3.Fully automatic tacking of whole set and levelling stack design.

Hydraulic air cylinder punch

1.With 5 tons hydraulic air cylinder punch from Taiwan .
2. The motor of clip for clamp the bag is Ac inventer motor control 1.5KW.
3. Automatic collect bags and finish stack bags with double fold device .

Automatic Collect Table

1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.
3.Collect table is driven by Micro-motor reducing servo.
