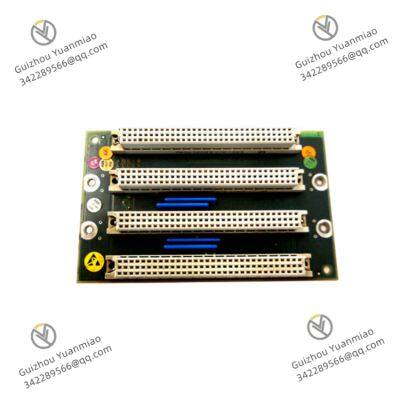

ABB DSBB175 Backplane Module

ABB DSBB175 is a bus interface module that holds an important position in industrial automation control systems, belonging to ABB's Distributed Control System (DCS) product series. It mainly undertakes the key task of connecting different devices with the control system, enabling efficient data transmission and communication. It provides stable and reliable connection guarantees for centralized monitoring and decentralized control in industrial production processes, and is an important component in building efficient and integrated industrial automation networks.

•


• Communication Interface: Equipped with a standard Profibus DP communication interface, which is one of the widely used fieldbus standards in the industrial field. The communication rate can be adjusted according to actual needs, up to 12Mbps, which can meet the high-speed transmission needs of large amounts of data in industrial sites and ensure real-time interaction of data between devices and the control system.

• Power Supply Specifications: Powered by a 24V DC power supply, compatible with common power supply systems in the industrial automation field. The power consumption is low, usually not exceeding 3W under normal working conditions, which helps reduce the overall energy consumption of the system and conforms to the industrial development trend of energy conservation and environmental protection. At the same time, it has an overvoltage protection function, which can effectively protect the module from damage when the power supply voltage fluctuates abnormally, improving the safety and stability of the module.

• Working Environment: The operating temperature range is -20℃ to +60℃, which can adapt to relatively wide temperature changes that may occur in industrial sites, and can operate stably whether in high-temperature production workshops or low-temperature storage environments. The relative humidity is 5% - 95% (non-condensing), which can maintain a good working state in humid environments and has strong environmental adaptability.

• Physical Specifications: Adopting a compact modular design, with dimensions of approximately 100mm×80mm×50mm and a weight of about 0.3kg, it occupies little space, facilitating installation and layout in control cabinets, especially suitable for industrial environments with limited space. The installation method is standard DIN rail mounting, and the installation process is simple and fast, allowing quick integration into existing automation systems.

•


• Efficient Data Transmission: With the high-speed transmission capability of the Profibus DP communication interface, it can realize the rapid exchange of large amounts of data between devices and the control system, ensuring the timely issuance of control commands and real-time feedback of on-site data. It provides data support for precise control of industrial production processes and improves the response speed and control accuracy of the system.

• Stable Communication Connection: The design fully considers complex environmental factors such as electromagnetic interference in industrial sites, and adopts advanced anti-interference technology, which can effectively resist the impact of electromagnetic interference on communication signals, ensure the stability of communication connections and the accuracy of data transmission, and reduce production failures caused by communication interruptions or data errors.

• Flexible System Integration: As a bus interface module, DSBB175 can flexibly connect various types of field devices, such as sensors, actuators, frequency converters, etc., realizing seamless docking between these devices and the upper-level control system, facilitating the construction of a unified and integrated industrial automation network, and improving the overall coordination and management efficiency of the system.

• Convenient Diagnosis and Maintenance: It has a complete self-diagnostic function, which can real-time monitor the working status of the module itself, such as power supply status and communication status. When an abnormal situation is detected, it will promptly issue a fault prompt through the status indicator light, and at the same time, can upload fault information to the control system, facilitating maintenance personnel to quickly locate the cause of the fault, shorten the fault troubleshooting and repair time, and improve the availability and maintenance efficiency of the system.
