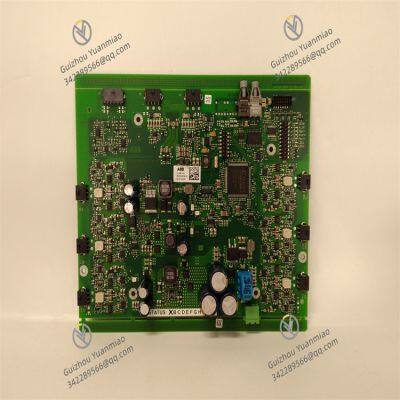

ABB 3BHE033068P106 Analog I/O Module

ABB 3BHE033068P106 is a high-performance central processing unit module belonging to ABB's high-end industrial control system family. It is mainly used for centralized control and management of large-scale complex industrial processes. As the computing core of the system, it has powerful data processing capabilities and efficient task scheduling capabilities. It can receive and analyze signals from various monitoring points in real-time, quickly generate control commands, and coordinate the orderly operation of various executive devices. It is the "nerve center" that ensures the precise, stable, and efficient operation of industrial production processes, playing an irreplaceable role in key industrial fields such as energy, chemical industry, and metallurgy.

• Processor Performance: Equipped with a high-performance multi-core processor with a main frequency of up to 1.2GHz, adopting an advanced superscalar architecture and supporting parallel processing technology. It can execute tens of millions of instructions per second, handle hundreds of input signals and dozens of control tasks simultaneously, easily meet the complex computing needs of large-scale industrial systems, and ensure real-time control response to the production process.

• Storage Capacity: Equipped with 4GB DDR4 high-speed random access memory (RAM) and 32GB industrial-grade solid-state drive (SSD), providing sufficient space for running complex control programs and storing massive production data and historical records. Among them, the SSD has anti-vibration and anti-impact characteristics, with fast data read and write speeds, which can quickly call common programs and historical data, improving system operation efficiency.

• Communication Interfaces: It has rich communication interfaces, including 2 Gigabit Ethernet interfaces, 4 RS-485 serial ports, 2 USB 3.0 interfaces, and 1 PROFINET interface. The Gigabit Ethernet interface supports high-speed data transmission, enabling fast communication with upper computers and data servers; the PROFINET interface supports real-time industrial Ethernet communication, ensuring precise time synchronization and high-speed data interaction with field devices, meeting the interconnection needs in Industry 4.0 scenarios.

• Power Supply Specifications: Adopts redundant dual-channel DC 24V power supply, with a power supply voltage allowable fluctuation range of DC 20V - 30V, and has an automatic power failure switching function. When one power supply is abnormal, it can switch to the other power supply within 5ms to ensure uninterrupted operation of the module. Under normal working conditions, the module power consumption is about 25W, taking into account energy consumption control while providing strong performance.

• Environmental Adaptability: It has an extremely wide operating temperature range and can operate stably in an environment of -40℃ to +70℃, adapting to extreme temperature scenarios such as outdoor control cabinets in cold regions and high-temperature industrial workshops. The relative humidity is 5% - 95% (non-condensing), and it can maintain stable performance even in humid coastal factories or rainy season environments.

• Physical Specifications: Adopts a sturdy metal shell design, with dimensions of approximately 220mm×180mm×100mm and a weight of about 2.8kg. It has good electromagnetic shielding performance and can effectively block external electromagnetic interference. The installation method is standard DIN rail mounting, compatible with mainstream control cabinet layouts, ensuring stable installation, and can be compactly arranged with other modules to save control cabinet space.

•


• Superior Data Processing and Real-Time Control: The combination of a multi-core processor and an efficient operating system endows it with excellent real-time data processing capabilities. For example, in the control system of a large thermal power plant, the module can collect hundreds of key parameters such as boiler pressure, steam turbine speed, and generator voltage in real-time. Through complex control algorithms (such as PID regulation, fuzzy control), it can quickly calculate and generate adjustment commands to precisely control equipment such as coal feeders, control valves, and excitation systems, ensuring stable power generation processes and maintaining various parameters within the optimal range.

• Redundant Design and High Reliability: In addition to dual-channel power redundancy, key internal circuits of the module (such as communication interfaces and clock modules) also adopt redundant design, so that a single component failure will not cause system paralysis. At the same time, it supports hot-swap function, allowing module replacement without system shutdown, greatly shortening fault repair time, improving system availability, and meeting the high reliability requirements of continuous production industrial scenarios.

• Open Programming and Compatibility: It supports multiple programming languages of the IEC 61131-3 standard, including Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), etc. Engineers can flexibly choose programming methods according to project requirements. It is compatible with communication protocols of third-party devices (such as Modbus, OPC UA), and can seamlessly integrate with sensors, actuators, and intelligent instruments of different brands, reducing the difficulty of system upgrading and transformation.

• Advanced Diagnosis and Remote Monitoring: It has multi-level diagnostic functions, which can real-time monitor its own hardware status (such as processor temperature, memory usage, communication link quality) and the operating status of connected devices. When an abnormality is detected, it immediately triggers an acousto-optic alarm and sends detailed fault information to the remote monitoring center via Ethernet. It supports remote login and debugging, allowing technicians to remotely view program operation status and modify parameters through dedicated software, reducing on-site maintenance workload and improving fault handling efficiency.

•


• Large-Scale Combined Cycle Power Plant Control System: In gas-steam combined cycle power plants, the 3BHE033068P106 module serves as the main controller to coordinate the operation of gas turbines, steam turbines, heat recovery boilers, and generators. It collects parameters such as temperature, pressure, and flow of various equipment in real-time, realizes energy balance between gas and steam systems through optimization algorithms, dynamically adjusts fuel supply and steam parameters to maximize power generation efficiency, and quickly responds to grid load fluctuations to maintain grid frequency stability.

• Comprehensive Control System for Large Chemical Industrial Parks: In chemical parks with multiple production units (such as ammonia synthesis, methanol, and urea units), the module serves as the central control core, integrating the control subsystems of each unit to realize production coordination across the park. For example, it automatically adjusts the output of upstream ammonia synthesis units according to the raw material demand of downstream units; monitors the supply status of utility systems (water, electricity, steam), rationally allocates resources to avoid supply-demand imbalance; and when an abnormality occurs in a unit, quickly links related equipment for emergency treatment to prevent the spread of accidents and ensure the overall safety of the park.

• Full-Process Control System for Steel Rolling in Metallurgical Enterprises: In the full-process hot rolling or cold rolling production lines of iron and steel enterprises, the module is responsible for overall control of key equipment such as heating furnaces, roughing mills, finishing mills, and coilers. By receiving real-time operating data of each equipment (such as heating furnace temperature, roll pressure, strip thickness), it accurately calculates parameters such as rolling speed and reduction, coordinates the synchronous operation of each equipment to ensure strip size accuracy and surface quality. At the same time, it records key data of the production process, providing a basis for quality traceability and process optimization.

• Urban Centralized Heating Pipe Network Control System: In the centralized heating system covering the entire city, the 3BHE033068P106 module serves as the control center, collecting real-time data such as supply water temperature, pressure, flow of each heat station, and room temperature at user ends. Combined with weather forecast information, it intelligently adjusts the output of heat source plants and the hydraulic balance of the pipe network. Through remote control of control valves and circulating pumps of each heat station, it realizes on-demand heating, ensuring the quality of residential heating while reducing energy consumption and pollutant emissions.
