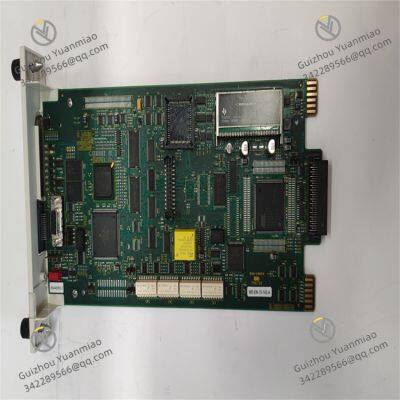

ABB Bailey IMDSM04 Digital Slave Input/Output Module

ABB Bailey IMDSM04 is a high-performance analog input module belonging to the Bailey series of automation control components. It is mainly applied in industrial automation scenarios requiring precise analog signal acquisition. It can accurately convert various on-site analog signals (such as temperature, pressure, flow, liquid level, etc.) through processing and then transmit them to control systems (such as DCS, PLC), providing reliable raw data for system monitoring, regulation, and decision-making. In industries with high requirements for signal acquisition accuracy and stability, such as electric power, chemical engineering, metallurgy, and water treatment, IMDSM04, with its excellent performance, serves as a key bridge connecting on-site sensors and control systems, ensuring precise control and efficient operation of industrial production processes.

•


• Input Channels: Equipped with 4 independent analog input channels, capable of simultaneously acquiring multiple channels of different types of analog signals, meeting the signal acquisition needs of small and medium-sized industrial control systems. For example, in the monitoring of small chemical reactors, it can simultaneously collect signals such as temperature, pressure, and stirring speed.

• Signal Types: Supports various common analog signal types, including 4mA - 20mA DC current signals, 0V - 10V DC voltage signals. Some models are also compatible with thermocouple (such as K-type, J-type) and thermal resistance (such as Pt100) signals, enabling adaptation to different types of sensors and enhancing the module's versatility.

• Accuracy Class: The measurement accuracy is as high as ±0.1% of full scale, ensuring that the collected signals are accurate and reliable, providing strong support for precise regulation of the control system. In the monitoring of water supply pipelines in waterworks with strict flow control requirements, it can ensure accurate collection of flow data.

• Resolution: Uses a 16-bit A/D converter with high resolution, capable of capturing subtle changes in analog signals. It performs excellently in the acquisition of small signals (such as micro pressure fluctuations), improving the system's ability to perceive on-site working conditions.

• Isolation Performance: The isolation voltage between channels is 250V AC, and the isolation voltage between channels and the system reaches 500V AC, effectively preventing signal interference between channels and the impact of on-site strong electricity on the control system. It can ensure stable signal transmission in industrial sites with complex electromagnetic environments (such as near motor groups).

• Sampling Rate: The sampling rate of each channel can reach 100Hz, enabling rapid response to dynamic changes in signals and timely reflection of the real-time status of on-site working conditions. In the process of rapidly changing temperature control (such as heat treatment furnaces), it can track temperature changes in real-time and feed them back to the control system.

• Power Requirement: The working power supply is +5V DC with a current of approximately 200mA, featuring low power consumption. While saving energy, it reduces the module's own heat generation, which is beneficial for long-term stable operation.

• Working Environment: The operating temperature range is -40℃ - 70℃, adapting to extreme high and low temperature environments; the relative humidity is 0 - 95% RH (non-condensing), allowing normal operation in humid environments; the anti-vibration performance complies with IEC 60068-2-6 standard, capable of withstanding vibration shocks of 10Hz - 500Hz, suitable for installation near equipment with certain vibrations (such as pumps, fans).

• Physical Specifications: The size is approximately 120mm×80mm×60mm, and the weight is about 0.3kg. With a compact structure, it can save space when installed in the control cabinet and is convenient for combined installation with other modules.

•


• High-Precision Signal Acquisition: Relying on a 16-bit high-resolution A/D converter and advanced signal conditioning circuits, IMDSM04 can accurately acquire and amplify weak analog signals, effectively suppressing noise interference and ensuring the authenticity and accuracy of signals. Even when the signal transmission distance is long (such as several hundred meters), it can maintain high acquisition accuracy. For example, in the workshop of a large factory, it can accurately collect the liquid level signal of a distant storage tank.

• Flexible Signal Adaptation: Supports multiple analog signal types. Users can configure the signal type through configuration software or hardware DIP switches according to the actual connected sensor type, adapting to different sensors without replacing the module, which greatly improves the flexibility and applicability of the module. In a mixed monitoring system with both pressure sensors (4mA - 20mA) and temperature sensors (Pt100), unified signal acquisition can be achieved through simple configuration.

• Strong Anti-Interference Ability: Internally integrates multi-level filter circuits (including RC filters and digital filters), which can effectively filter out electromagnetic interference and radio frequency interference in industrial sites, reduce signal fluctuations, and ensure the stability of collected data. In equipment monitoring near frequency converters, it can avoid signal distortion caused by high-frequency interference.

• Self-Diagnostic Function: Equipped with a comprehensive self-diagnostic capability, it can monitor the module's power supply status, A/D conversion circuit, channel connection, etc. When a fault is detected (such as channel disconnection, power supply abnormality), it will send alarm information through indicator lights or communication interfaces, facilitating maintenance personnel to quickly locate the fault point and shorten the fault Investigation time.

• Modular Design: Adopts a standard modular structure, making installation and replacement convenient. It can be directly inserted into a DIN rail or a dedicated slot. During maintenance, only the faulty module needs to be replaced without re-debugging the entire system, improving the maintainability and maintenance efficiency of the system. The module can be quickly replaced without stopping the production line, reducing production interruption time.

• System Compatibility: Supports seamless connection with ABB Bailey series DCS systems (such as Symphony Plus) and is compatible with third-party control systems. It realizes data interaction through standard communication protocols (such as Modbus), facilitating integration into various industrial automation networks and adapting to different system architecture requirements.

•


• Chemical Production Process Monitoring: In a fertilizer production workshop, IMDSM04 is used to collect analog signals such as the temperature (thermocouple signal), pressure (4mA - 20mA signal) in the reactor, and the current (0V - 10V signal) of the stirring motor. These signals are processed by the module and transmitted to the DCS system. The system adjusts the feed amount and stirring speed in a timely manner according to signal changes to ensure that the reaction is carried out under optimal conditions, improving fertilizer yield and quality.

• Power System Parameter Monitoring: In the turbine room of a thermal power plant, the module collects parameters such as the bearing temperature (thermal resistance signal), steam pressure (pressure transmitter signal), and rotational speed (magnetoelectric sensor signal converted to 4mA - 20mA) of the turbine. The data is transmitted to the monitoring system in real-time. When the parameters exceed the normal range, the system issues an alarm and activates corresponding protection measures to ensure the safe and stable operation of the turbine.

• Water Treatment Plant Level and Flow Control: In an urban sewage treatment plant, IMDSM04 collects analog quantities such as the liquid level of the sedimentation tank (4mA - 20mA output by the ultrasonic level meter), the flow rate of the inlet pipe (electromagnetic flowmeter signal), and the output pressure of the dosing pump (pressure transmitter signal). The control system adjusts the water inflow and dosing amount according to these data to ensure the sewage treatment effect and avoid problems such as overflow or insufficient water in the sedimentation tank.

• Furnace Temperature Monitoring in Metallurgical Industry: In the monitoring of rolling heating furnaces in steel mills, the module collects the temperature of each area of the heating furnace (K-type thermocouple signal) and transmits it to the PLC system in real-time. The PLC adjusts the fuel supply according to the temperature data, controls the furnace temperature within the set range, ensures uniform heating of the steel, improves rolling quality, and reduces the rejection rate of steel due to uneven temperature.
