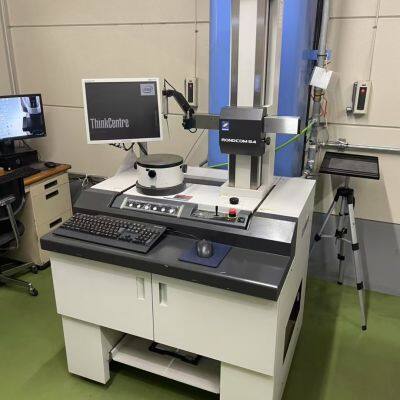

RONDCOM 54DX Roundness Measuring Machine

Product Details

The RONDCOM 54DX is a compact yet high - accuracy CNC roundness measuring machine, representing the cutting - edge technology of Tokyo Seimitsu.

1. Measurement Range and Dimensions

Maximum Measuring Diameter: Φ300mm, suitable for a wide range of workpieces.

R - axis: 170mm, allowing for flexible radial measurements.

Z - axis: 300mm (high - stand column: 500mm), accommodating different heights of workpieces.

Φ580mm, capable of handling large - sized components.

300mm (high - stand column: 500mm), providing versatility in measuring tall workpieces.

2. Precision and Accuracy

In accordance with JIS B 7451 - 1997, it achieves (0.02 + 4H/10000)μm (H: height from the tabletop to the measurement point).

Also meeting JIS B 7451 - 1997 standards, with (0.02 + 4H/10000)μm (H: distance from the rotation center to the measurement point).

Z - axis: 0.12μm/100mm, 0.20μm/290mm (high - stand column: 0.28μm/490mm), ensuring high - precision vertical measurements.

R - axis: 0.8μm/150mm, providing accurate radial straightness measurements.

Z - axis : 0.8μm/290mm (high - stand column: 1.18μm/490mm).

R - axis: 1.0μm/150mm.

R - axis: (2 + L/170)μm (L: measurement length), guaranteeing precise radius - direction indication.

3. Rotation and Movement Speeds

θ - axis:

2 - 10 revolutions per minute, adjustable according to measurement requirements.

2, 4, 6, 10, 20 revolutions per minute.

Z - axis :

0.5 - 6mm/s ( 50mm/s), enabling efficient vertical traversal.

R - axis :

(mobile speed): 0.5 - 6mm/s (max 25mm/s), facilitating smooth radial movement.

 Z - axis/R - axis ± 5μm, ensuring accurate positioning during automated operations.

4. Equipment Configuration

 The turntable has an outer diameter of Φ220mm, providing a stable platform for workpiece rotation.

 With a measuring force of 30 - 100Mn (adjustable), it can adapt to different workpiece materials and surface conditions.

5. Measurement and Analysis Functions

Roundness, flatness, flatness (multiple), parallelism, concentricity, co - axiality, cylindricity, radial deviation, perpendicularity, thickness deviation, run - out, radius measurement, partial circle.

(Z - axis),  (R - axis), cylindricity, perpendicularity, parallelism, radial deviation, axis straightness.

Equipped with centering and tilting adjustment functions, enabling precise workpiece alignment.

Grooving function (with up - down, angle, and cursor options) for detailed measurement and marking.

Combination of roundness evaluation methods, allowing for comprehensive analysis.

Design value comparison function, facilitating quality control against specifications.

 (with sketch lines, shadow lines, and contour lines), providing intuitive visualization.

Real - time display function for immediate feedback during measurement.

 (such as load curve, amplitude distribution curve, power - spectrum curve) for in - depth analysis.

Wide - range，ensuring accurate results across various measurement scenarios.

CNC ，enhancing measurement efficiency and repeatability.

Automatic centering and tilting adjustment functions for hands - free operation.

6. Special Features

Standard - equipped with an offset - type cage, which can be upgraded to an R54 standard - equipped offset - type cage. CNC offset - type cages can also be installed as an option, providing flexibility in detector mounting.

 A 17 - inch LCD displays measurement conditions, parameters, print - out conditions, contour lines (both in planar and 3D graphics), remarks, and error messages, offering a user - friendly interface.

 It can be connected to a color printer or laser printer (SD option), enabling easy documentation of measurement results.

7. Power Requirements

AC/220V, 50 - 60Hz ± 10% / approximately 470VA (excluding the printer), ensuring compatibility with common power supplies.
