Used Keyence VR5200 3D Profilometer

Product Details

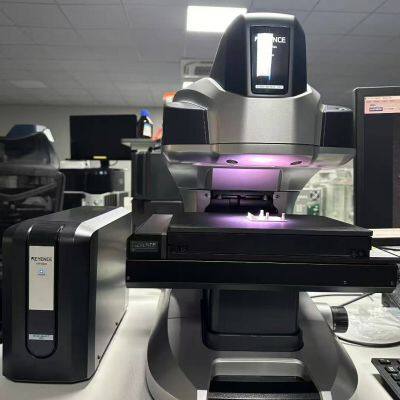

The used Keyence VR5200 3D Profilometer is a highly efficient and reliable measuring device that has been widely used in various industrial fields. Despite being second - hand, it still maintains excellent performance and can meet your precise measurement needs.

1. Multiple Measurement Functions in One Unit

This device combines the advantages of multiple measuring instruments. It can handle a wide range of measurement projects, from overall shape measurement of products to roughness measurement. Whether it is a large - scale area or a tiny part, the VR5200 can complete the measurement tasks accurately. For example, in the automotive industry, it can precisely measure the shape and roughness of engine components, ensuring the quality of automotive parts.

2. Non - contact and Wide - range Measurement

The measurement area of the VR5200 has been significantly expanded to 200×100×50mm, and the measurable height has increased by 5 times. It adopts a non - contact measurement method, which uses an original sensing technology. By visualizing the "undulations" based on 800,000 - point cloud data, it can not only measure small components but also large products. This makes it suitable for different - sized objects in industries such as electronics and metal processing.

3. Automated Identification and Setting

With the Smart Measurement function, all you need to do is place the object on the stage, and the rest of the operations are automatic. The device can automatically identify the width and height of the target object, determine the size of the target object to automatically set the measurement range, and optimize the brightness and focus position. This feature effectively eliminates human setting errors, ensuring the accuracy and repeatability of measurement results. For instance, in mass - production scenarios in the manufacturing industry, this automated function can greatly improve production efficiency.

4. Image Stitching and Automatic Control

The VR5200 supports fully automatic measurement with image stitching functions, including XY automatic control and Z automatic control. It can also automatically create MAP images and set regions. This allows for seamless measurement of large - area objects, and the automatically generated MAP images provide a more intuitive view of the measured object, which is very useful in the inspection of large - format printed circuits or large - scale mechanical parts.

5. 3D - CAD Comparison Measurement

This function enables the comparison of differences between the finished product and the design. It can output measurement data in CAD format, which is convenient for further data analysis and processing. In product development and quality control processes, engineers can use this function to quickly identify whether the actual product meets the design requirements, and make corresponding adjustments in a timely manner.

6. Technical Specifications

Illumination System:

Observation light source: LED ring light (red, blue, green)

Measurement light source: white LED

Observation Field of View:

Low - magnification (large field of view): On a 15 - inch monitor, there are multiple magnifications. For example, at 12× magnification, the horizontal is 24.0mm; at 25× magnification, the horizontal is 12.0mm; at 38× magnification, the horizontal is 8.0mm.

High - magnification (high - resolution): 40× magnification on a 15 - inch monitor, with a horizontal of 7.6mm and a resolution of up to 0.5μm.

XY Measurable Range: 206x104mm

Camera Element: 1 - inch 4 - megapixel monochrome CMOS

Data Processing Unit: Keyence - specified dedicated computer, with Windows 10 Pro operating system

Environmental Resistance:

Operating temperature: +15 to 30 °C

Working environment humidity: 35 to 80% RH (no condensation)
