Home > Products > Bently Nevada > BENTLY 125768-01 An analog input module in the 3500 series monitoring system

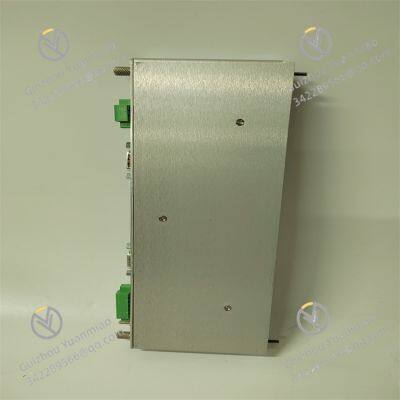

BENTLY 125768-01 An analog input module in the 3500 series monitoring system

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+85℃
Humidity	5%~95% (non-condensing)

Product Description

Many products are not on the shelves yet, please contact us for more models.

Bently Nevada 125768-01 is an analog input module in the 3500 series monitoring system, specifically designed to collect various analog signals (such as temperature, pressure, flow rate, etc.) in industrial sites. It can convert these physical quantities into digital signals and transmit them to the 3500 system for processing and analysis, serving as a key component to expand the monitoring dimensions of the system. The following is the relevant content from its user manual:

Product Overview

This module focuses on high-precision acquisition of analog signals and supports multiple types of sensor inputs. It can real-time monitor key parameters of rotating machinery auxiliary systems (such as bearing temperature, lubricating oil pressure, cooling water flow rate, etc.) and work in collaboration with other monitoring modules in the system (such as vibration and speed modules) to provide data support for comprehensive status evaluation of equipment. Its stable performance and flexible configuration make it widely used in large-scale unit monitoring scenarios in industries such as electric power, petrochemicals, and metallurgy.

Technical Parameters

Power Supply: 24V DC input, typical power consumption ≤ 3W.
Channel Configuration: 16 independent analog input channels, supporting single-ended or differential input modes (configurable via software).
Signal Types:

Current signals: 4-20mA (default), 0-20mA (configurable), input impedance 250Ω.
Voltage signals: 0-5V DC, 1-5V DC, ±5V DC, input impedance ≥ 10MΩ.

Accuracy and Resolution: 16-bit resolution, accuracy ±0.05% FS (full scale), linear error ≤ ±0.02% FS.
Sampling Rate: 10Hz per channel (adjustable via software, up to 50Hz), with all channels sampling synchronously.
Isolation Performance: Optoelectronic isolation between channels and between channels and the backplane, isolation voltage 2500V AC (for 1 minute), common-mode interference rejection ≥ 100dB.

Operating Environment:

Operating temperature: -40°C to 70°C;
Storage temperature: -50°C to 85°C;
Relative humidity: 5% to 95% (non-condensing);
Vibration: 5g (10Hz-2000Hz);
Shock: 25g (11ms half-sine wave).

Mechanical Specifications: Approximately 100mm × 150mm × 35mm (half-height module), weight about 0.3kg.

Functional Features

High-Density Channel Design: 16 input channels can simultaneously collect multiple types of analog signals, reducing module space occupation and lowering system integration costs.
Wide Signal Compatibility: Supports various analog signal types such as current and voltage, and can be directly connected to common industrial sensors like thermocouples, resistance thermometers, and pressure transmitters.
High-Precision Acquisition: 16-bit resolution and low linear error ensure the accuracy of signal conversion, meeting the needs of monitoring subtle parameter changes (such as slight fluctuations in bearing temperature).
Flexible Filter Configuration: Each channel supports programmable digital filtering (low-pass filtering, with cutoff frequencies configurable as 1Hz, 5Hz, 10Hz, 50Hz) to effectively suppress high-frequency noise.
Channel-Level Diagnostics: Equipped with functions such as open-circuit detection and over-range alarm. When a sensor fails or the signal is abnormal, it sends fault information to the RIM module via the system bus, facilitating quick troubleshooting.
