Home > Products > Bently Nevada > BENTLY 146031-01 Transient Data Interface I/O Module

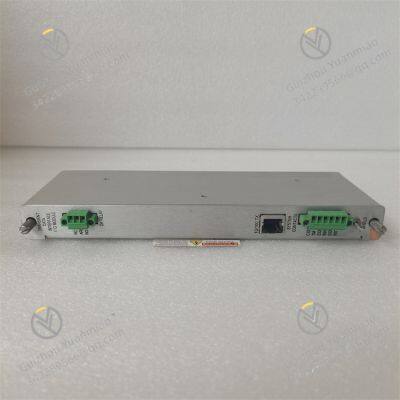

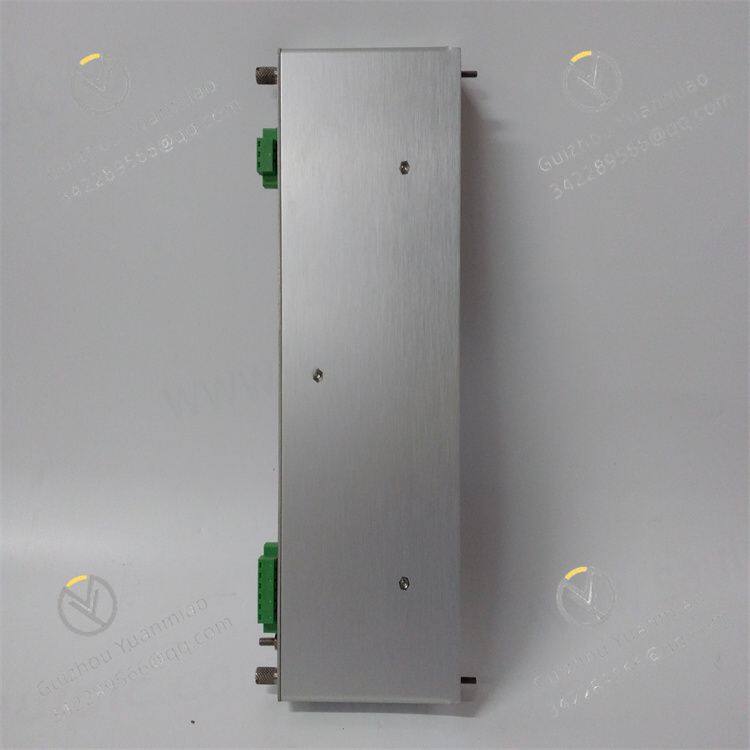

BENTLY 146031-01 Transient Data Interface I/O Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+85℃
Humidity	5%~95% (non-condensing)

Product Description

Many products are not on the shelves yet, please contact us for more models.

146031-01 is a transient data interface I/O module developed by Bently Nevada, belonging to the 3500/22M system components. The following is the relevant content from its user manual:

Product Overview

This module, also known as the 3500/22 10Base-T/100Base-TX I/O module, serves as the interface between the 3500 monitoring system and System 1 machinery management software. It combines the functions of the 3500/20 Rack Interface Module (RIM) with those of a communication processor, and is used in conjunction with M-series monitors (such as 3500/40M, 3500/42M, etc.).

Technical Parameters

Interface Type: 10Base-T/100Base-TX Ethernet interface for efficient data transmission.
Supply Voltage: 220V AC.
Sampling Rate: High sampling rate up to 50kHz, capable of capturing and recording short-term transient events.
Operating Environment: Operating temperature ranges from -20°C to +50°C; humidity ranges from 10% to 95% RH (non-condensing).
Installation Position: Must be installed in slot 1 of the 3500 rack, adjacent to the power supply.

Functional Features

Data Acquisition and Storage: Continuously collects steady-state and transient waveform data, with data storage capabilities to record and transmit transient data to monitoring systems or data analysis tools.
Multi-Channel Input: Equipped with multiple input channels, enabling simultaneous collection of transient data from different locations or equipment, improving data acquisition efficiency and accuracy.
Strong Anti-Interference Ability: Operates stably in various complex industrial environments, providing accurate data.
High Integration: Combines the functions of 3500/20 RIM with the data collection capabilities of a communication processor, simplifying system structure and enhancing reliability and stability.

Installation and Wiring

The module should be installed in slot 1 of the 3500 rack. For wiring, follow Ethernet interface standards, use appropriate network cables to connect the module to other devices, and ensure secure connections to avoid communication disruptions due to looseness.

Front Panel Indicators

OK LED: Indicates that the 3500/45 is operating normally.
TX/RX LED: Indicates that the 3500/45 is communicating with other modules in the 3500 rack.
Bypass LED: Indicates that the 3500/45 is in bypass mode.

Configuration Method

The product is pre-configured for daisy-chain applications, ensuring easy installation without software configuration. Subsequent configuration can be done via a web interface using a computer with a standard web browser, or advanced network settings or fine-tuning can be performed using CLI.

Application Scenarios

Widely used in industrial machinery monitoring, such as vibration monitoring of pumps, compressors, generators, etc.; also applicable in industries like power, oil and gas, chemical engineering, as well as vibration monitoring of key components in transportation tools such as ships, trains, and aircraft.

Maintenance and Precautions

During maintenance, disconnect all connections completely to ensure safety, prevent reconnection, confirm installation completion, and perform grounding and short-circuit treatment.
Only trained personnel are allowed to install, operate, maintain, or repair the product system. Unauthorized modifications or structural changes to the product system are prohibited.
