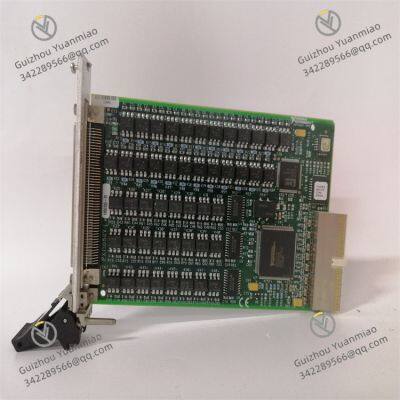

NI PXI-6527 185633D-01 Digital I/O Module

High-Speed Digital Signal Processing: Supports a maximum digital I/O rate of 100 MHz, meeting the requirements for high-frequency timing control and high-speed data transmission.

High-Density Channel Configuration: 32 independent digital I/O channels (16 inputs/16 outputs) supporting differential or single-ended modes, flexibly adapting to different logic level standards.

Programmable Triggering and Timing Mechanisms: Built-in hardware trigger controllers and timers support edge triggering, count triggering, and multi-module synchronization, suitable for complex timing logic systems.

High-Speed Production Line Control: Synchronously control multiple actuators (e.g., solenoid valves, stepper motors) via digital I/O channels to implement precise timing logic (e.g., robotic arm motion sequences).

Sensor and Actuator Interfaces: Connect digital sensors such as encoders and proximity switches to read real-time status and output control signals (e.g., conveyor belt start/stop logic).

Bus Protocol Simulation: Simulate communication protocols such as SPI, I2C, UART, and CAN to test the interface compatibility of embedded systems (requires matching software protocol stacks).

High-Speed Data Transmission: Achieve high-speed backplane data transmission using LVDS differential mode (e.g., synchronous data exchange between modules).

Hardware Prototype Verification: Verify the timing correctness of logic circuits during FPGA or microcontroller development via digital I/O channels (e.g., FPGA pin function testing).

Fault Injection Testing: Simulate digital signal anomalies (e.g., level transitions, timing errors) to evaluate system robustness (e.g., avionics anti-interference testing).

Array Device Management: Simultaneously control 32-channel LED arrays, relay groups, or digital devices, suitable for lighting control systems, power management modules, etc.

NI-DAQmx Driver: Compatible with platforms such as LabVIEW, Python, C++, and MATLAB, providing low-level APIs and high-level function libraries to support channel configuration, trigger settings, and data read/write operations.

NI MAX: Hardware configuration tool supporting channel calibration, self-test, and system topology management, enabling intuitive setup of input/output modes and level standards.

SignalExpress: Code-free data acquisition software supporting real-time digital signal monitoring, timing analysis, and data recording.

Level Conversion Modules: Pair with NI PXI-4931 (isolated level converter) to achieve compatible conversion between different logic levels (e.g., 3.3V/5V).

Multi-Module Synchronization: Cascade multiple NI PXI-6527 modules via the System Clock and Trigger Bus of the PXI chassis to expand to hundreds of digital I/O channels (e.g., large-scale testing systems).

Signal Conditioning: Use chassis such as NI PXI-1010 to accommodate high-speed data transmission, and pair with shielded cables to reduce electromagnetic interference (EMI).

Timing Synchronization Design: Utilize built-in clock synchronization pins (e.g., SYNC IN/OUT) to ensure multi-channel signal transmission delay <10 ns.

Anti-Interference Strategies: Differential mode (LVDS) reduces common-mode interference; split ground planes (separate analog and digital grounds) minimize crosstalk.

Real-Time Data Processing: Enable DMA transfer mode to avoid CPU bottlenecks, suitable for continuous high-speed data read/write scenarios (e.g., industrial camera trigger control).
