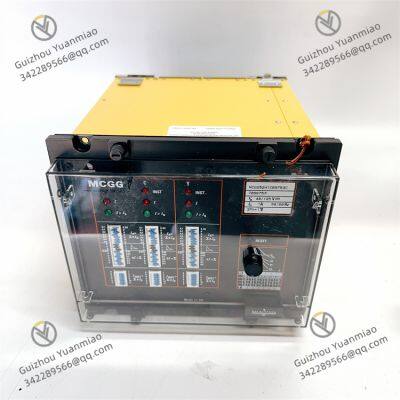

ALSTOM MCGG52H1CB0753C High-Performance Control Module

Overcurrent Protection Function
As an overcurrent relay, it acts when the current exceeds the set value, effectively protecting circuits and equipment from damage caused by overload currents.

Rugged and Durable
With a weight of 20.72 pounds, it can be inferred that the device adopts a relatively robust housing and internal structure design to adapt to industrial environments.

Selection of Installation Location
Choose a well-ventilated location free from strong electromagnetic interference, vibration, and convenient for operation and maintenance.

Fixed Installation
According to the equipment's mounting holes, use appropriate screws or clamps to firmly fix the relay on the mounting plate or control cabinet.

Electrical Connection

Grounding Treatment
Reliably ground the relay's grounding terminal to ensure safety and reduce electromagnetic interference.

Pre-power-on Inspection
Use a multimeter to check the resistance between power input terminals to ensure no short circuit. Verify that all wiring is secure, terminal screws are tightened, and cables are free from damage or poor contact. Confirm the correct installation and connection of the current transformer.

Power-on Test
Switch on the power and observe whether the relay's power indicator light is normally on. Check if the relay can correctly identify the power status through the upper-level software or the relay's own display function.

Input Signal Test
Simulate different current signals input to the relay to check if it can correctly detect current changes and issue corresponding alarm or action signals when the current exceeds the set value. For example, use an adjustable current source to input currents of different magnitudes and observe the relay's action.

Function Test
Test the relay's overcurrent protection function by simulating overcurrent faults to check if the relay can act within the set time to cut off the circuit or send an alarm signal. Meanwhile, check whether its reset function is normal, i.e., whether the relay can return to the normal working state after the fault is eliminated.

Parameter Setting and Optimization
Set parameters such as overcurrent protection thresholds and action times through the relay's local setting interface or upper-level software according to actual application needs. After setting, conduct actual operation tests, observe the relay's performance under real working conditions, and further optimize parameters as needed to achieve the best protection effect.
