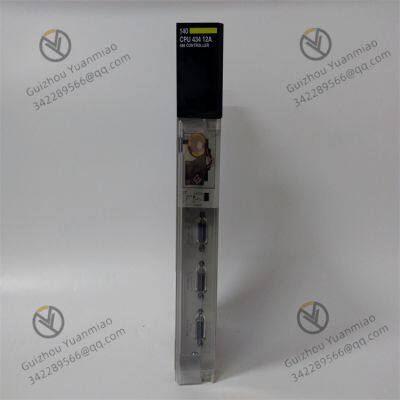

Schneider 140CPU43412A high-performance processor module

Schneider  140CPU43412A  high-performance processor module

Core Parameters and Performance

1. Processor and Memory

• System memory: 2MB (expandable to 4MB)

• Application memory: 4MB (expandable to 8MB)

• Data storage: 4MB (expandable to 16MB)

• CPU Type: PowerPC 603e, 200MHz clock speed

• Memory Configuration:

• Scanning Speed: Basic instruction execution time is approximately 0.02μs, and complex instructions take about 0.1μs, supporting high-speed logic operations and real-time control.

2. I/O Processing Capability

• Local I/O: Supports a 27-slot local backplane, with unlimited maximum I/O points (calculated based on power supply and bus load).

• Distributed I/O: Supports up to 63 remote stations via Modbus Plus or Unity Network, with each station supporting up to 8,000 digital I/O points or 1,984 analog I/O points.

• Remote I/O: Supports the S908 remote I/O system, with a maximum of 31,744 digital I/O points.

3. Communication Interfaces

• 1 Modbus Plus port (for distributed I/O)

• 2 RS232 ports (supporting Modbus protocol)

• 1 Unity Network port (for redundant configuration or communication with other processors)

• Standard Ports:

• Expansion Options: Can be expanded with communication modules for Ethernet (e.g., 140NOE77101), Profibus DP, AS-i, and other interfaces.

Functional Features

1. High-Reliability Design

• Redundancy Support: Supports hot standby redundancy configuration (requires 140CRP93200 redundancy module) to ensure uninterrupted system operation.

• Power Protection: Built-in 1.2Ah lithium battery preserves RAM data for up to 10 years during power outages.

• Environmental Adaptability: Operates in a temperature range of -25°C to +60°C, humidity of 5%-95% (non-condensing), and is resistant to vibration and shock (compliant with IEC standards).

2. Programming and Operation

• Programming Languages: Supports IEC 61131-3 standard languages (LD, FBD, ST, SFC, IL) and Modicon proprietary languages.

• Configuration Tools: Programming, debugging, and monitoring via Unity Pro or Concept software.

• Diagnostic Functions: Seven front-panel LED indicators display real-time operating status (e.g., Ready, Run, Error, etc.), supporting online fault diagnosis.

3. Safety and Compliance

• Certifications: CE, UL, CSA, ATEX (Zone 2), etc., compliant with industrial safety standards.

• Network Security: Supports user permission management and communication encryption to prevent unauthorized access.

Application Scenarios

1. Large Production Line Control

• Suitable for scenarios requiring high-speed processing of massive I/O points, such as automotive manufacturing and electronic assembly, enabling simultaneous control of hundreds of devices.

2. Process Industry

• Complex process control in chemical, pharmaceutical, metallurgical, and other fields, supporting high-precision analog signal acquisition and PID regulation.

3. Energy and Power Systems

• Substation automation, motor group control, and renewable energy grid connection, integrated with SCADA systems via Modbus/TCP.

4. Municipal Infrastructure

• Sewage treatment plants, water supply systems, and rail transit signal control, adapting to harsh environments and long-term operation needs.

5. Redundant and Highly Available Systems

• Ensures uninterrupted operation in critical process control (e.g., oil refining, chemical industry) through hot standby redundancy configuration.

Comparison with Other Models

Expansion Modules and Accessories

• Communication Modules: 140NOE77101 (Ethernet), 140NOM21100 (Modbus Plus), 140CRP93200 (redundancy module).

• Power Modules: 140CPS11420 (24VDC), 140CPS11440 (110/220VAC).

• I/O Modules: Digital input/output modules (e.g., 140DDI35300), analog modules (e.g., 140ACI03000).
