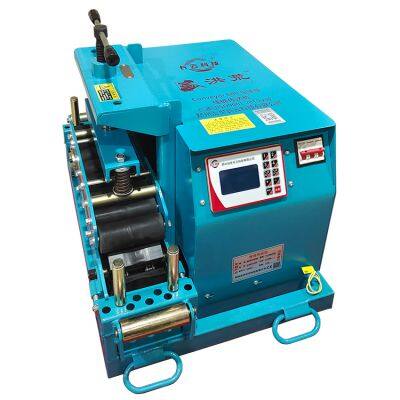

Changyun Technology Constant Speed Version 600 Cable conveyor Cable Laying Machine Cable pulling tools

The Conveyor Cable Conveyor, also known as the "Conveyor cable conveyor", is a high - performance cable handling equipment developed by Changyun Technology. It is designed to meet the needs of various cable laying projects with its excellent performance and user - friendly features.

• Model: Constant Speed Version 600

• Voltage: 380V, suitable for standard industrial power supply environments.

• Speed Regulation: It features 4 gear positions along with stepless speed regulation. This allows operators to flexibly adjust the conveying speed according to different cable types and laying requirements. The conveying speed ranges from 4 - 26m/min, with the optimal speed being 10 - 16m/min in gear 2 and gear 3.

• Control Method: Equipped with a control panel for on - site operation and a remote control function for convenient long - distance control. Additionally, it supports multi - machine joint control, which greatly improves work efficiency in large - scale cable laying projects.

• Power: 1500W, providing sufficient power for stable and continuous cable conveying operations.

• Cable Diameter Compatibility: Capable of handling cables with a diameter ranging from 1 - 10cm, making it applicable to a wide variety of cables.

• External Dimensions: The overall size is 74X46.5X55.5cm, which is relatively compact and easy to store and transport.

• Net Weight: Approximately 71kg, which is relatively light considering its powerful functions, facilitating easy handling and movement.

• Compact and Portable: With its small volume and light weight, this cable conveyor is extremely easy to move. Whether it is within a construction site or between different work locations, it can be quickly relocated, saving time and labor costs.

• Advanced Control System: The combination of a control panel and remote control, along with multi - machine joint control and stepless speed regulation, offers great convenience and flexibility. Operators can precisely control the conveying process according to actual needs, whether they are working alone or coordinating with a team.

• Cable - friendly Design: The upper pressure wheel has been changed to a rubber - covered wheel. This design reduces the friction and wear on the cable surface during the conveying process, effectively protecting the integrity of the cable insulation layer and extending the service life of the cable.

• Consistent Speed Performance: One of the notable features of this equipment is that all cable conveyors of the same model will maintain the same speed at the same gear position. This ensures the uniformity of cable laying, especially in long - distance and large - scale projects, reducing the occurrence of cable winding and other problems.

• Wide Application Range: Thanks to its wide speed range and cable diameter adaptability, it can be used in various fields such as power engineering, communication engineering, urban construction, and industrial plant construction, meeting different cable laying needs.

The product parameters are closely related to the operating conditions. Different operating conditions, such as cable slippage or environmental changes, may lead to differences in the parameters. In case of any parameter changes, we will not notify separately.

The Conveyor Cable Conveyor is your ideal choice for efficient and reliable cable laying operations. Choose Changyun Technology and enjoy the convenience and high - quality service it brings.
