Changyun Technology Tank 900 cable conveyor and its supporting tracked transporter

Crawler Vehicle Product DetailsI. Product Overview

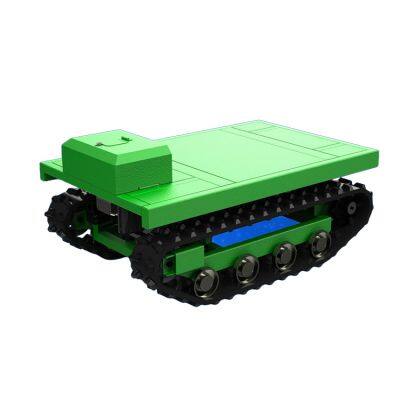

The crawler vehicle of Changyun Technology is a mobile - device specially designed for complex working conditions. With its excellent performance and flexible control methods, it can meet the transportation and operation needs of various scenarios. The main body of the vehicle is painted green, with a simple and technological appearance.

II. Product Parameters(A) Driving Performance

• Walking Speed: It can be adjusted within the range of 0 - 46m/min to adapt to different operation rhythms and working conditions. Whether it is slow movement required for fine operations or fast progress for efficiency pursuit, it can be easily achieved.

• Climbing Angle: It has strong climbing ability, with a maximum climbing angle of up to 30°, enabling it to easily cope with various complex terrains such as mountains and slopes, thus expanding the working range of the equipment.

• Speed Regulation: It has a dual - speed regulation method of 4 gears + stepless speed change. The 4 - gear setting provides basic speed options, facilitating operators to quickly switch according to different tasks; the stepless speed change can achieve more delicate speed fine - tuning, ensuring stable and accurate driving under various fine operations or complex road conditions.

(B) Control Method

It adopts a dual - control mode of control panel + remote control. The control panel is located on the vehicle body, which is convenient for on - site operators to control in close proximity; the remote control function gives operators greater flexibility and safety. They can precisely operate the crawler vehicle from a distance away from dangerous areas or complex environments, effectively avoiding personnel from being directly exposed to potential risks.

(C) Power System

• Motor Power: It is equipped with two motors with a power of 1200W each. The total power is strong, providing abundant power support for the vehicle, ensuring that it can still operate stably under heavy loads and complex terrains.

• Driving Power: The driving power can reach 2000N. The strong driving force enables the crawler vehicle not only to carry relatively heavy goods but also to maintain good passability on soft, muddy and other low - adhesion road surfaces.

• Self - weight: Its own weight is 210kg. While ensuring the structural strength and stability, it minimizes the weight of the whole vehicle as much as possible, which helps to improve the vehicle's maneuverability and fuel economy.

• Load Capacity: It has excellent load - bearing capacity, with a maximum load capacity of 1T, which can meet the cargo transportation needs of most industrial and engineering scenarios.

• Fuel Tank Capacity: It has a built - in 5L fuel tank, which can provide a long endurance time, reduce the frequency of refueling, and improve work efficiency. It is especially suitable for long - time and continuous operation scenarios.

• External Dimensions: The external dimensions are 126×80×69cm. The overall shape is compact. While ensuring the internal space to accommodate the power system and other key components, it minimizes the floor area of the vehicle as much as possible, making it flexible to turn and operate in narrow spaces.

III. Product Advantages(A) Powerful Power

The gasoline generator equipped on it provides stable and powerful power for the vehicle. Combined with high - performance motors, the crawler vehicle shows excellent power output. Whether on flat roads or rough mountain roads, it can demonstrate strong climbing and traction capabilities, and easily cope with various complex working conditions.

(B) Convenient Mobility

The flexible crawler design endows the vehicle with excellent terrain adaptability. Compared with traditional wheeled vehicles, it can move freely on various bad road conditions such as sandy land, muddy land, and snowy land. At the same time, the remote control function further improves its mobility. Operators can flexibly adjust the vehicle's position according to actual needs, greatly improving work flexibility and efficiency.

(C) Flexible Control

The 4 - gear + stepless speed - change speed regulation method and the control mode combining the control panel and remote control make the control of the crawler vehicle extremely flexible. Operators can precisely adjust the vehicle's speed and driving direction according to different operation tasks and environmental conditions to achieve fine - grained operations.

(D) Wide Range of Applications

With its powerful power, flexible control, and good terrain adaptability, this crawler vehicle is suitable for a variety of fields, such as construction, mining, agriculture and forestry operations, emergency rescue, etc. Whether it is transporting building materials, handling heavy equipment, or conducting field exploration, disaster relief and other work, it can play an important role.

IV. Precautions

The above parameters are conventional laboratory data. In actual use, if the operation method is improper, the vehicle slips, or it is affected by the environment, some parameters may vary. Therefore, please read the product manual carefully before using the crawler vehicle and operate it strictly in accordance with the operation regulations to ensure the normal operation of the equipment and safe use.
