Jianniu 3 ??electric Cable Conveyor (Cable pusher) for Underground Cable Pulling and Laying Hybrid Electric Power

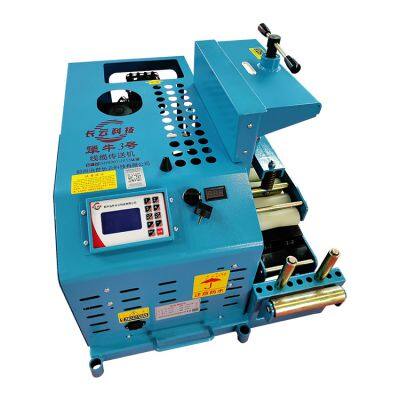

Conveyor Cable Conveyor - Jiangniu No.3

Manufacturer: Changyun Technology

Product Overview

The Conveyor Cable Conveyor - Jiangniu No.3 is a high - performance cable - laying equipment designed for various cable - laying scenarios. It combines advanced technology and user - friendly design to provide efficient and convenient cable - laying solutions.

Key Features

Power System
Equipped with a gasoline generator as the power source, it offers reliable power supply for continuous cable - laying operations. The gasoline engine provides sufficient power to ensure stable performance in different working environments.

Starting Mode
The equipment features both electric start and hand - pull start modes. The electric start is quick and convenient, especially suitable for frequent start - up operations. The hand - pull start serves as a backup, ensuring the equipment can be started even in case of battery problems or other emergencies.

Speed Regulation
It has a 4 - gear position speed regulation system combined with stepless speed regulation. This allows for precise control of the cable - laying speed. Whether it is a slow and steady laying process for complex terrains or a fast - paced laying in open areas, the operator can adjust the speed according to the actual situation. The optimal speed range is 10 - 16m/min (in 2nd and 3rd gears), while the overall conveying speed can be adjusted from 4 - 26m/min.

Control Method
The control method is a combination of a control panel and a remote control, along with multi - unit linkage control. The control panel on the equipment provides on - site operation convenience, while the remote control allows the operator to control the equipment from a distance, improving work safety and flexibility. The multi - unit linkage control function enables multiple units to work together in coordination, greatly improving work efficiency in large - scale cable - laying projects.

Power
With a power of 1800W, the equipment can generate a maximum pulling force of 4800N. This strong pulling force ensures that it can handle cables with a diameter ranging from 1 - 18cm smoothly, reducing the risk of cable slippage during the laying process.

Dimensions and Weight
The external dimensions of the equipment are 90.5×65×65cm, and its net weight is 131kg. Its compact size and relatively light weight make it easy to transport and move, which is very suitable for different job sites, whether it is an indoor or outdoor project.

Optional Configurations

• Inverter: Optional inverter can be configured to provide power for other tools, increasing the versatility of the equipment.

• Transformer: An optional transformer can be installed to achieve silent construction, reducing noise pollution during work and being more suitable for construction in noise - sensitive areas.

Advantages

• Portability and Adaptability: Its small size and light weight make it easy to carry and move, and it is applicable to various working conditions.

• Convenient Operation: The remote control function makes the operation more convenient, reducing the physical labor intensity of the operator.

• Multi - Functionality: The optional configurations such as the inverter and transformer expand the application scenarios of the equipment.

• Reliable Performance: High - quality gasoline engines and wear - resistant rubber blocks ensure the reliable operation of the equipment, and the thickened wear - resistant conveyor cable is not easy to slip.

Notes

The product parameters are closely related to the working conditions. When the working conditions change, such as cable slippage or environmental changes, the parameters may vary. In case of any parameter changes, we will not notify you separately.
