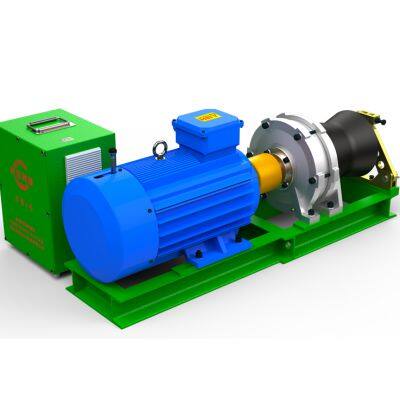

Lijian4winche Wire Drawing Machine Electric Version Winch

Product Name: Lijian 4 Cable Winch
Model: Lijian 4

Product Features:

1. Strong Pulling Force: Maximum pulling force of 40KN, suitable for high-intensity job requirements.

2. Efficient Operation: Speed of 0-20m/min, equipped with a 5.5kw high-quality copper-core motor, ensuring stable operation with strong pulling force and high speed.

3. Intelligent Control: Supports control panel and remote control operation, with stepless speed adjustment for flexible and convenient operation.

4. Safety Protection: Motor features automatic braking upon power failure, preventing accidents and ensuring job safety.

5. Durable Design: Reinforced drum is pressure-resistant, wear-resistant, and deformation-free; shaft drive is impact-resistant and vibration-resistant, with high transmission efficiency and no overheating or slipping.

6. Efficient Transmission: High-strength gearbox and gear set design ensure smooth operation without jamming, extending equipment service life.

7. Multi-functional Operation: Supports 4 adjustable gears and 3 operation modes (neutral, forward reverse, and reverse reverse), adaptable to various job scenarios.

8. Separate Control Box: Easy to move and operate, improving job flexibility.

9. Compact Design: Dimensions of 115x30x40cm, weight of 170kg, compact structure for easy transportation and installation.

Application Scenarios:

• Suitable for cable laying and traction in industries such as power, construction, and telecommunications.

• Ideal for high-intensity and high-frequency working environments, such as large-scale construction sites.

• Multi-functional operation modes adapt to various complex working conditions, improving job efficiency.

Technical Parameters:

• Model: Lijian 4

• Maximum Pulling Force: 40KN

• Speed: 0-20m/min

• Power: 5.5kw

• Power Supply: AC380V

• Speed Adjustment: Stepless speed control

• Control Modes: Control panel + remote control

• Motor Configuration: Automatic braking upon power failure

• Dimensions: 115x30x40cm

• Weight: 170kg

Product Advantages:

• Strong pulling force, high speed, and stable operation, suitable for high-intensity job requirements.

• Automatic braking upon power failure ensures job safety and prevents accidents.

• Reinforced drum and shaft drive design are pressure-resistant, wear-resistant, impact-resistant, and vibration-resistant, extending equipment life.

• High-strength gearbox and gear set ensure smooth operation without jamming and high transmission efficiency.

• 4 adjustable gears and 3 operation modes adapt to various job scenarios, offering flexible and convenient operation.

• Separate control box for easy movement and operation, improving job efficiency.
