Changyun Technology electric cable conveyor650 cable layer cable dogs cable booster

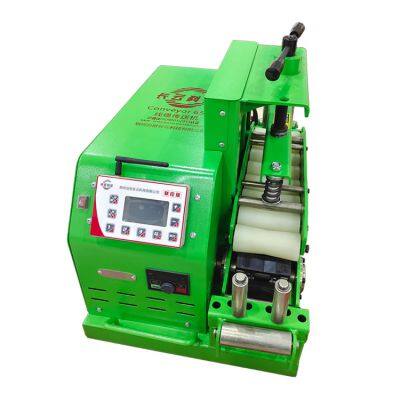

The Conveyor650 cable conveyor is a top - notch piece of equipment crafted by Changyun Technology for the seamless transportation of cables. Ideal for a wide array of engineering tasks, it integrates cutting - edge technology with user - friendly design to offer exceptional performance.

• Model: Conveyor650

• Power Supply: The standard power supply is AC380V, and it can be customized to AC220V to meet different on - site requirements.

• Speed Regulation: It features a versatile speed control system with 4 gear positions and stepless speed regulation. Additionally, it supports multi - unit joint control and single - unit speed fine - tuning, allowing for precise operation in various scenarios.

• Control Method: Users can operate the conveyor through a control panel or a remote control. There is also a single - unit speed micro - adjustment function for fine - grained control.

• Power: With a power consumption of 2200W, it provides sufficient energy for efficient cable transportation.

• Conveying Speed: The conveying speed can be adjusted within the range of 0 - 36m/min, making it adaptable to different project paces.

• Maximum Tensile Force: The copper - core motor endows it with a maximum conveying tensile force of 3600N, ensuring the reliable handling of cables.

• Cable Diameter: It is capable of handling cables with a diameter ranging from 1cm to 10cm, covering a wide variety of cable types.

• Conveying Method: It adopts a crawler - type conveying method, which provides stable and reliable support during the transportation process.

• External Dimensions: The compact dimensions of 66×41×46.5cm make it easy to maneuver in different working environments.

• Net Weight: Weighing only 71kg, it is lightweight and convenient for transportation and installation.

• High - performance Traction: Thanks to its copper - core motor, the Conveyor650 can generate a maximum tensile force of 3600N. This powerful force enables it to smoothly transport cables of various sizes and weights, ensuring the smooth progress of cable - laying projects.

• Compact and Portable: Its small size and light weight make it highly portable. Whether it is in a narrow indoor space or a large - scale outdoor construction site, it can be easily moved and deployed, making it suitable for a wide range of working conditions.

• Convenient Operation: The remote control function greatly enhances the convenience of operation. Operators can control the conveyor from a distance, reducing the need to work in potentially hazardous environments. In addition, the control panel on the equipment itself also provides easy - to - use controls. The four - gear stepless speed regulation and one - key start - stop functions allow for quick and flexible adjustments.

• Multi - unit Joint Control: All models are equipped with a joint control module, enabling multiple conveyors to work in coordination. This feature is extremely useful in large - scale cable - laying projects, as it can improve work efficiency and ensure the consistency of cable laying.

• Flexible Speed Adjustment: Operators have the freedom to adjust the conveying speed within the 0 - 36m/min range according to the actual needs of the project. Whether it is a slow and precise operation in a complex environment or a fast - paced task, the conveyor can meet the requirements.

• Cable Protection: The combination of a nylon upper pressure wheel and high - quality rubber blocks ensures that the cables are not damaged during transportation. These components provide a non - slip surface and gentle pressure, protecting the integrity of the cables and reducing maintenance costs.

• Power Engineering: Widely used in power transmission and distribution projects, such as the laying of high - voltage and low - voltage cables in substations, power plants, and urban power grids. It helps to ensure the safe and efficient installation of power cables.

• Telecommunication Projects: Suitable for the installation and laying of communication cables in communication base stations, cable TV networks, and broadband access projects. It plays a crucial role in building and maintaining communication infrastructure.

• Building Construction: Ideal for the internal cable laying of large buildings, including office buildings, shopping malls, and residential areas. It contributes to the smooth operation of electrical and communication systems within buildings.

In conclusion, the Conveyor650 cable conveyor is an essential tool for cable transportation in various engineering fields. Its excellent performance, convenient operation, and wide range of applications make it a reliable choice for professionals in the industry. Please note that the above parameters are based on laboratory routine data, and actual performance may vary due to improper use, slippage, or environmental factors.
