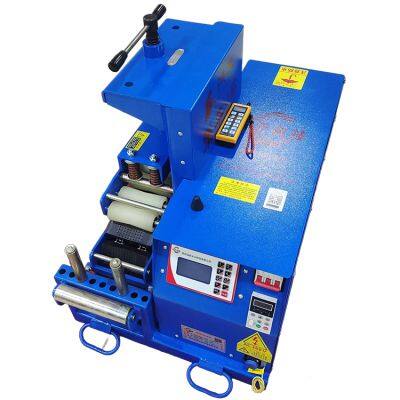

JiangNiu2HongHuang Cable Conveyor Cable Pulling Machine Cable Pusher

Product Features:

1. Flexible Power Supply: Standard power supply of AC380V, customizable to AC220V, adaptable to different power environments.

2. Intelligent Control: Equipped with 4 gear positions + stepless speed adjustment, supports control panel and remote control operation, with multi-unit linkage for improved work efficiency.

3. Efficient Power: Motor power of 3000W, featuring high-quality copper-core motor for stable performance and long service life.

4. Precise Speed Control: Conveying speed of 0-26m/min, optimal working speed of 10-16m/min (2nd and 3rd gears), suitable for various job requirements.

5. Strong Pulling Force: Maximum pulling force of 6000N, suitable for cable laying with diameters of 1-18cm.

6. Compact and Lightweight: Dimensions of 90x53x67cm, weight of approximately 125kg, easy to transport and operate.

7. Durable Design: Nylon pressure wheels combined with high-quality rubber wheels, carefully designed for extended service life.

8. Multi-functional Operation: Supports panel + remote control modes, start-stop at any time, push-pull switching with one button, flexible and convenient operation.

9. Linkage Function: Equipped with a linkage module, supports multi-unit linkage for large-scale operations.

Application Scenarios:

• Suitable for cable laying in industries such as power, telecommunications, and construction.

• Ideal for working conditions with limited space or frequent movement requirements.

• Multi-unit linkage function is perfect for large-scale cable laying projects, improving overall work efficiency.

Technical Parameters:

• Power Supply: AC380V (standard), AC220V (customizable)

• Motor Power: 3000W

• Conveying Speed: 0-26m/min

• Optimal Speed: 10-16m/min (2nd and 3rd gears)

• Maximum Pulling Force: 6000N

• Cable Diameter: 1-18cm

• Dimensions: 90x53x67cm

• Weight: Approximately 125kg

Product Advantages:

• Compact and lightweight, easy to transport and operate, adaptable to various working conditions.

• Remote control operation for greater convenience and flexibility.

• Four gear positions + stepless speed adjustment, start-stop at any time, push-pull switching with one button, meeting precise job requirements.

• Equipped with a linkage module, supports multi-unit linkage for large-scale operations.

• Nylon pressure wheels combined with high-quality rubber wheels, durable and long-lasting.
