High Quality Small Lab Scale Spray Dryer With Best Price
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
5L 10L 15L Pilot Spray Dryer Drying Machine for Sale
-
Vacuum Freeze Dryer Vacuum Freeze Drying Machine With Manufacture Factory
-
Lab Vacuum Freeze Dryer Machine Lyophilizer
-
Rolled Ultrafiltration Membrane Filtration
-
Microfiltration Membrane System With Best Price
-
High Quality Automatic Tablet Press Machine Tablet Making Machine/maker
Product Details
| Brand Name | RICH Smart | Place of Origin | China | |
| Model Number | RSD-2L | Certification | ISO CE | |
| Type | Spray Drying Equipment | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12month | Weight | 70*80*110cm | |
| Dimension(L*W*H) | 150kg | Condition | New | |
| Voltage | 220V 50/60Hz | Power(W) | 3.5KW |
Product Description

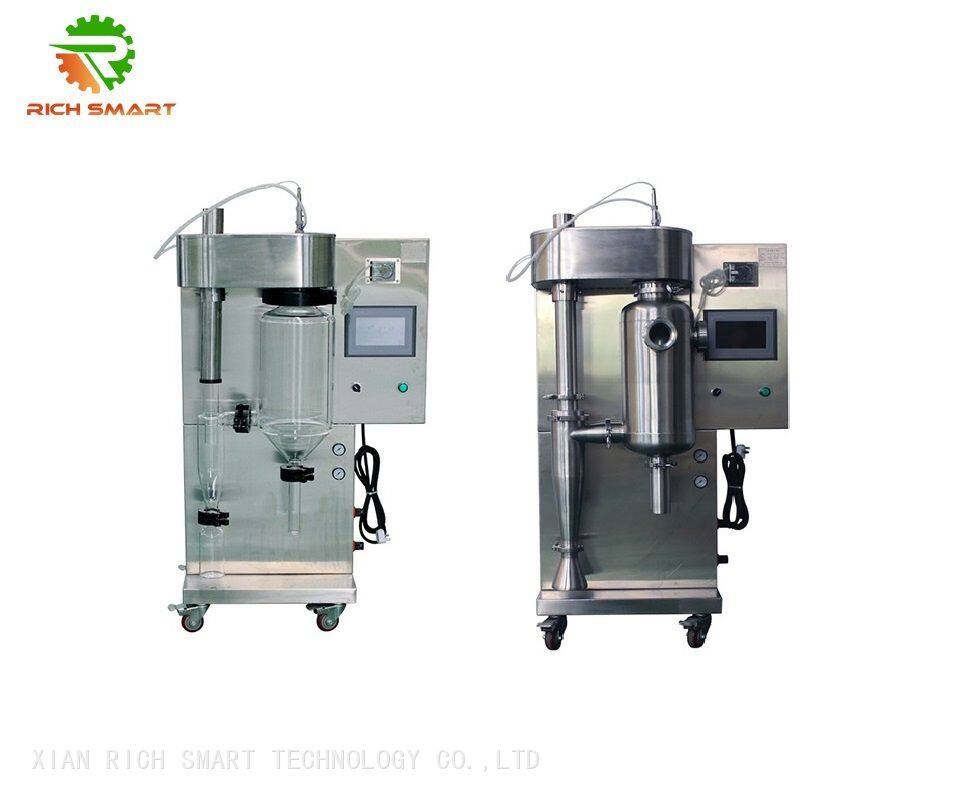

High quality Small Lab Scale Spray Dryer with best price
Usually, when laboratories or scientific research institutions are developing new products, in order to verify the scientificity and rationality of the experiment, they need to use lab spray dryer to test the materials. However, large-scale spray dryer wastes materials, and the two fluid nozzle spray dryer of imported brands is very expensive. Based on this background, the Richsmart engineering teams is the first manufacturer in China to develop two fluid nozzle spray dryer and promote mass production equipment, the most cost-effective manufacturer.
Equipment parameters
Product model | RSmart-2L | |
Max evaporation capacity | 2000ml/H（water） | |
Material contact part | High borosilicate glass | 304 Stainless Steel |
Drying method | Open heating drying system | |
Atomization condition | Two-fluid atomizer (standard 1.0mm nozzle, optional 0.7, 1.5, 2.0, 3.0, etc.) | |
Hot air condition | Air supply + parallel flow | |
Drying time | 1～1.5S | |
Control system | PLC+7-inch touch screen | |
Feeding method | Peristaltic Pumps（0-580ml/min） | |
Minimum feed amount | 50mL | |
Heater power | 3KW | |
Inlet air temperature | ～250℃; Continuously adjustable | |
Temperature control accuracy | ±1℃ | |
Variable frequency fan | 0.55KW；140m3/min | |
Silent air compressor | 0.55KW；0.8Mpa | |
Complete machine power | 3.6KW/220V | |
Equipment size | 780×610x1150mm(Length x Width x Height) | |
Complete machine weight | 100KG | 125KG |
