Microbial Fermentation Parallel Glass Bioreactors

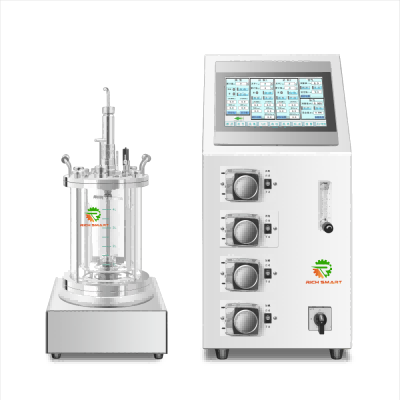

Cell Culture Glass Bioreactors

The cell culture glass bioreactors are designed to pump the outcomes of laboratory research and such experiments with powerful performance.

Features of Controlling System
Multiple Control Function

1.Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.

2.Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.

3.Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.

Smart PID control

1.Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting 2.according to the process requirements.

3.Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.

4.Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.

5.PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.

6.Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.

7.Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).

Standard Glass Vessel

Equipped with an easy-to detach condenser around the air outlet, for easy cleaning, no effusion and no contaminating bacteria.

Standard sensors port for precise measurement and control of temperature, pH, DO, Antifoam, feed, aeration and pressure.

Magnetic drive stirring for good sealing performance.

Compact design for saving critical laboratory space..

Standard with flat or pitched-blade; other types of impellers are available

Configured one sampling port.

Equipped with a filter to prevent contaminated air from getting to the system.

Tempered high borosilicate glass 3.3 for vessel and SS316L for the heating plate.

Perfectly suited for research and development, available in 1L, 2L, 3L, 5L, 7L, 10L and 15L.

Upgrading option list

Gas mixing options: Air/O2/CO2/N2

Cleanliness detection

Online live cell detectio

Automatic vessel pressure control

Top areation

Thermal mass flow controller

CO2 detection

Redox

Exhaust detection analysis

Liquid level

Filling weighing system

Methanol and ethanol content online detection

Additional feed pump

Variable speed pump

Upper controller

Magnetic drive

Customizable blade

Vessel passivation

Custom port
Cover lifting
