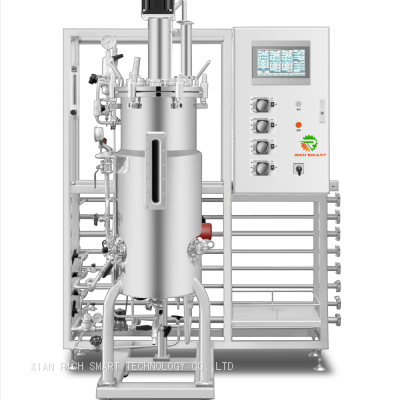

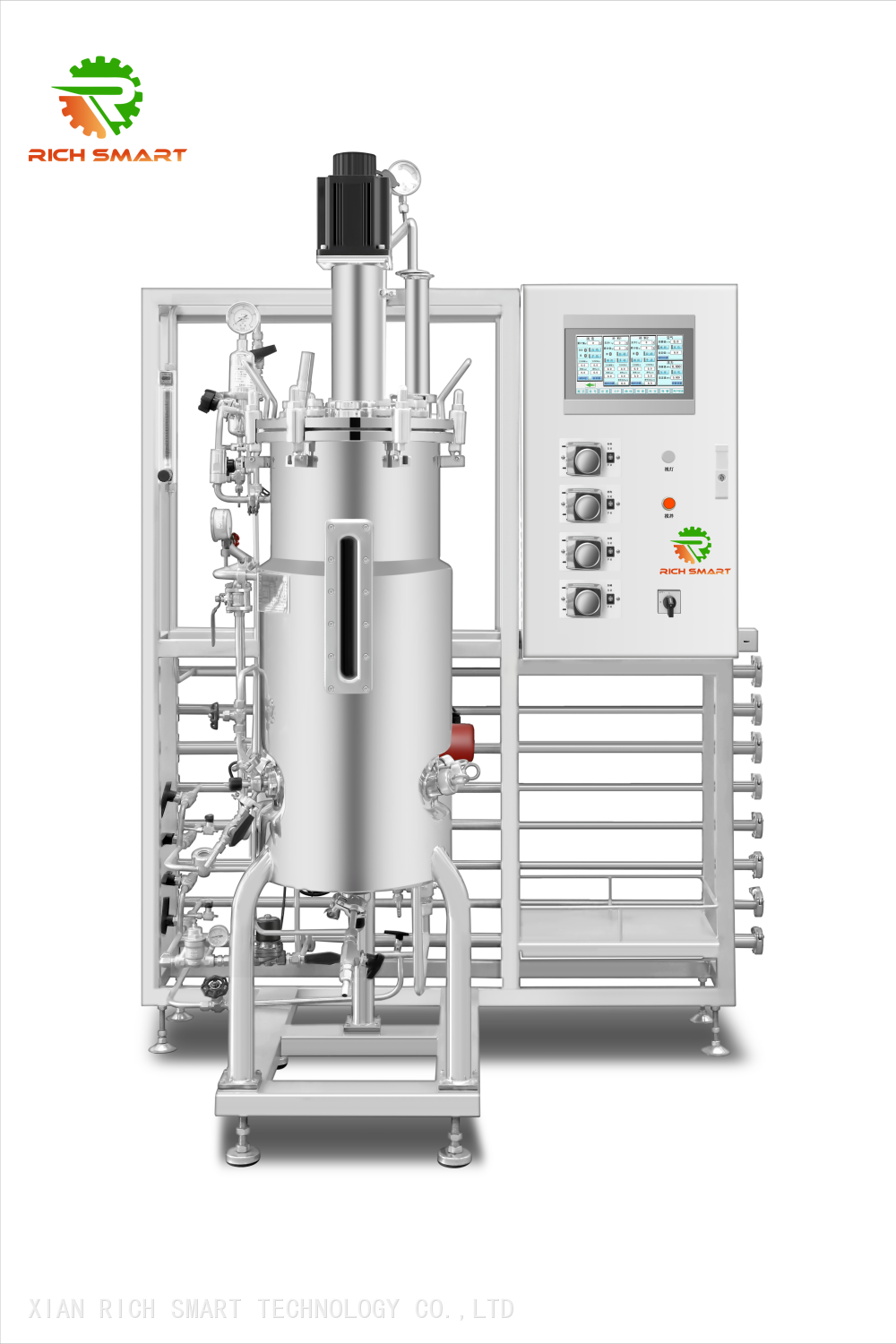

High Quality Stainless steel bioreactor with long gurrantee

High Quality Stainless steel bioreactor with long gurrantee

Standard Stainless Steel Vessel

Available from 10L to 500L (max. 20ton), up to 70% working volume (larger volume available).

Batch, fed-batch, continuously-batch, semi-continuous and high-density batch systems.

Sterilization-In-Place (SIP), equipped with high temperature steam pipeline.

Standard sensor ports for precise measurement and control of temperature, pH, DO,  antifoam, feed, aeration and pressure.

Optional Clear-In-Place (CIP), one port for cleaning device is provided at the top of the tank.

Jacket vessel allows hot water and cooler to adjust the temperature.

Standard with mechanical stirring, special stirring shaft material and precision processing. it has ideal dynamic balance performance with proper ratio of upper and lower shaft.

Standard with flat or pitched-blade- impellers; other type impellers are available.

Features of Controlling Tower

Multiple Control Function

Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.

Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.

Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.

Smart PID control

Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting according to the process requirements.

Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.

Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.

PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.

Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.

Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).

Upgrading option list

Gas mixing options: Air/O2/CO2/N2

Cleanliness detection

Online live cell detectio

Automatic vessel pressure control

Top areation

Thermal mass flow controller

CO2 detection

Redox

Exhaust detection analysis

Liquid level

Filling weighing system

Methanol and ethanol content online detection

Additional feed pump

Variable speed pump

Upper controller

Magnetic drive

Customizable blade

Vessel passivation

Custom port
Cover lifting

Standard Type Specifications
