High Quality Automatic Tablet Press Machine tablet making machine/maker
- 1000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
ZPWE Economic Automatic Rotary Tablet Press Machine
-
Fully Atomatic Capsule Filling Machine /capsule making machine with factory price
-
Semi-automatic manual capsule filling machine 00
-
Automatic liquid capsule filling machine/liquid encapsulation machine
-
Benchtop Glass bioreactor with best factory price
-
High Quality Stainless steel bioreactor with long gurrantee
Product Details
| Brand Name | RichSmart | Place of Origin | China | |
| Model Number | GZP Series | Type | Rotary Tablet Press | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 1300KG | Dimension(L*W*H) | 760*1000*1750 | |
| Production Capacity | 70,000-198,000 | Condition | New | |
| Voltage | 220V 380V 50/60HZ | Power(W) | 5500 | |
| Max. Tablet Diameter(mm) | 70,000-198,000 | Max. Tablet Thickness(mm) | 0.5-8 | |
| Max. Pressure(KN) | 16 |
Product Description

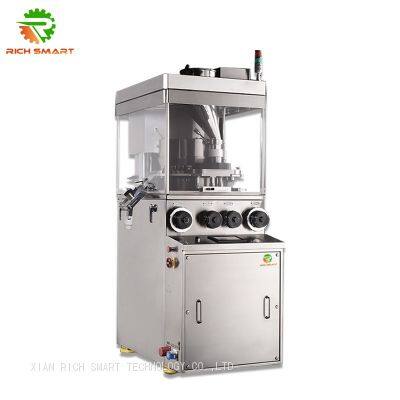

GZP Series High Quality Automatic Rotary Tablet Press Machine
Applications:
The GZP Series Automatic Pharmaceutical Food Dishwasher Vitamin C High Quality Intelligent Rotary Tablet Press provides new design principle, which makes standardization, modularity and series design come true. The characteristic of machine is high-precision, sub high-speed and automation. It is the best choice for high output and large batch production
Product Description
1. Adopted HMI & PLC control with automatic overload protection system.
2. Adopted force feeder, it can press different kinds of powder.
3. Automatic oil lubrication system, low noise & stable working when high speed running.
4. Adopted pre-press & main-press pression.
5. Automatic compensation of powder. (Optional function)
6. Monitoring pressure of each punches and display the pressure on HMI. There are two channels for qualified tablets and defective tablets. The defective tablets can be rejected out automatically. (Optional function)
Technical Parameter
Model | GZP-16 | GZP-23 | GZP-30 |
Punch Quantity(Sets) | 16 | 23 | 19 |
Tooling Type(IPT) | D | B | BB |
Main. Pressure(KN) | 100 | 100 | 100 |
Pre. Pressure(KN) | 16 | 16 | 16 |
Max. Tablet Diameter(mm) | 25 | 16 | 13 |
Max. Irregular Depth(mm) |
≤25 | ≤19 | ≤16 |
Die Diameter(mm) | 38.1 | 30.16 | 24 |
Punch Diemeter(mm) | 25.35 | 19 | 19 |
Punch Lenght(mm) | 133.6 | 133.6 | 133.6 |
Max. Filling Depth(mm) | 20 | 20 | 20 |
Max. Thickness(mm) | 0.5-8 | 0.5-8 | 0.5-8 |
Rotary Speed(r/m) | 22-110 | 22-110 | 22-110 |
Max. Output Capacity(pcs/h) | 20,000-100,000 | 50,000-150,000 | 70,000-198,000 |
Powder(kw) | 5.5 | 5.5 | 5.5 |
Overall size(mm) | 760*1000*1750 | 760*1000*1750 | 760*1000*1750 |
Machine Weight(kg) | 1300 | 1300 | 1300 |
