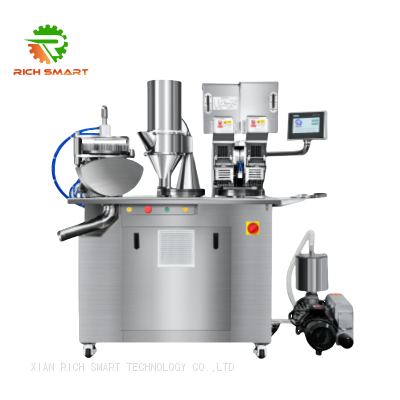

Automatic liquid capsule filling machine/liquid encapsulation machine

Automatic liquid capsule filling machine/ encapsulation machine

Description of Automatic liquid capsule filling machine/liquid encapsulation machine

The Rich Smart liquid capsule machine is fully automatic to fill and seal the liquid and other materials into empty hard capsules. It provides a highly active and insoluble pharmaceutical solution for packaging liquid materials for many large and small pharmaceutical companies and health care products manufacturers.

Except for just simply injecting the liquid ingredient into a capsule, rich packing liquid capsule filling machine is equipped with working sections and technologies to ensure a smooth and efficient production process.

A wide variety of machine models with different capacities and budgets for you to choose from.

Main features of liquid capsule filling machine:
1. It adopts large-size touch screen and has fault diagnosis function, which can store various operating parameters and reserve network interface.
2. The mold adopts aviation aluminum alloy and has a long service life. Optimized design, the number of cavities is large, and the mesh adhesive rate is low.
3, the mold pressure is pneumatic, fast and stable.
4, rubber drum, rubber smearing system and mold parallel design, high stability. The mold shaft, the rubber drum and the pull net shaft are driven by independent motor frequency conversion, which is convenient to adjust, low in noise and stable in operation.
5, the rubber skin is micro-lubricated, truly no-clean, improve efficiency and save money.
6. The rubber skin cooling adopts the independent split professional chiller, which has low energy consumption and high cooling efficiency.
7. The spray body is convenient to lift and lower, and can stay at any position to reduce the labor intensity of workers.
8, the lower pill uses the net bucket, and there is a cold wind pre-determined type, so that the plastic pill molding is more beautiful, and the transportation is more reasonable.
9. The material bucket is adjustable in temperature, stirrable and with speed regulation, and is more suitable for suppressing Chinese medicine suspension.
10, the equipment shape is in line with ergonomics, pleasant design, convenient and reasonable operation.

The advantage of  Liquid Capsule Filling Machine (A Wise Investment for Pharma):

We are committed to manufacture machines with superior quality to meet GMP standards while with efficient and utility features.

1.High accuracy

With Japan’s Yaskawa servo motor, the error of liquid injection is less than 2%. The problem of unevenness caused by the sticky material of is well solved by the ceramic pump.

2.No Leakage

Equipped with the corresponding sealing liquid according to the type of capsule used by the customer, the sealing is tight and no leakage.

3.Pollution-free

The rotary design to obtain a patent for utility model. SIL silicone sealing ring effectively prevents liquid into the internal turntable and dust overflow pollution.

4. Durable Material

All the parts that contact ingredients directly are made of Medical-grade stainless steel 316L, and the output device adopts seven lines with aero aluminum.

Capable Capsule sizes：

Liquid capsule filling machine is available in 5 kinds of standard capsule sizes.

（The filling amount may vary because of the powder difference）
